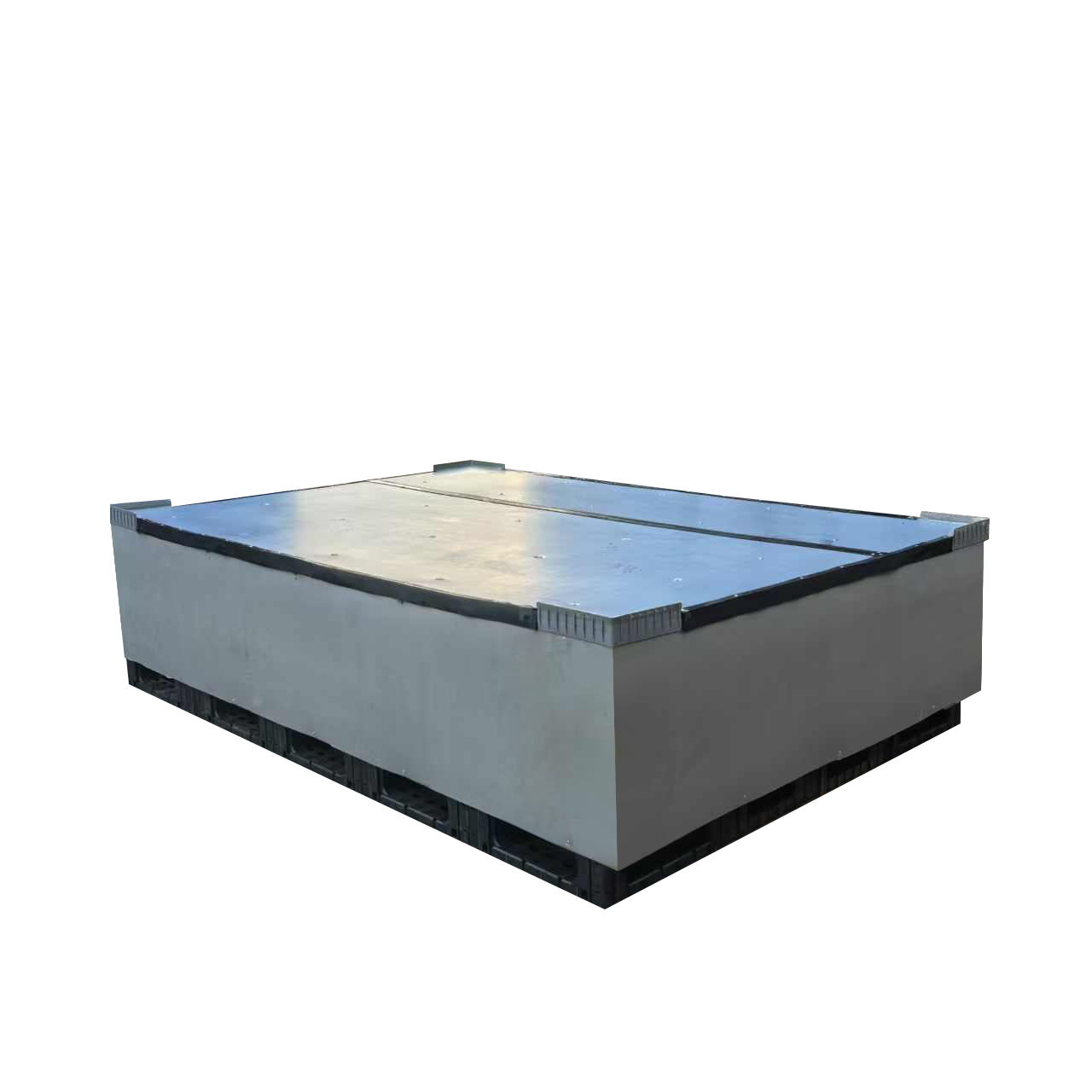

TecPack Boxes are strong, stackable containers built to store and move heavy goods. (They're also known as Reusable Plastic Bins or Pallet Boxes).Combining durability with logistical efficiency, these containers are ideal for automotive parts, machinery, electronics, and bulk commodities.They fold flat to save space and are built to last. This makes them a great choice for any business looking to cut costs and go green.
Item No. | HD-ZS1208 |
Material: | HDPE(lid & pallet)+PP(honeycomb sheets) |
External DIM(mm)： | 1200*800*760/ 860/1000/1050/... Any customized height |
Internal DIM(mm): | 1130*730*330/590/690/830/880/... External -175 |
Sleeve height(mm): | Total height-125 |
Folded height(mm): | 1200*800*205 |
Pallet & lid weight: | 20kg/24kg (9 feet pallet: 14kg+lid:6kg /3 runners pallet: 18kg+ lid:6kg) |
Locks: | Optional , 2 locks at lid, 2pcs at bottom pallet |
Honeycomb sleeve： | 11.3mm 3.0kg/m2 | 11.3mm 4.0kg/m2 |
Static load: | 1+3 (1200kg), height<900mm 1+2 (1200kg), height>900mni | 1+3 (2000kg), height<900mm 1+2 (2000kg), height>900mm |
Dynamic load: | 1+2 (900kg), height<900mm 1+1 (900kg), height>900mm | 1+2 (1500kg), height<900mm 1+1 (1500kg), height>900mm |
Single box load： | 300Kg | 500Kg |
Service life： | More than 3 years |
Steel Reinforcement: | Yes, optional for 4pcs steel tubes |
Dynamic load with reinforcement: | 1000kg |
Packing quantity: | 120 sets/20G | 300 sets/40H |
Bottom pallet type: | 3 runners/9 feet |
Key Features & Performance
1. Rugged Construction & Durability
Material: Made from a tough, layered plastic (PP/HDPE), these boxes can handle deep freezes (-30°C), high heat (80°C), rain, and sun.
Load Capacity:
Static Load: Up to 1,500 lbs (680 kg) for heavy components like engine blocks.
Dynamic Load: Resilient against shocks during road or rail transport.
Lifespan: Built for 200+ reuse cycles, outperforming single-use alternatives.
2. Smart Design for Logistics Efficiency
Collapsible Structure: A 7:1 foldable ratio reduces empty container volume by 85%, slashing return freight costs.
Lightweight: Self-weight of just 22 kg (48.5 lbs), minimizing labor strain.
3. Customizable Security & Accessibility
Drop-Down Panels: Features 14.5" (370 mm) panels with hook-and-loop fasteners for easy loading/unloading.
Secure Locking System: Sliding tabs snap sleeves, pallets, and lids into place, preventing accidental openings.
Thermoformed Pallet & Lid: Reinforced 4-way entry pallet interlocks with the lid to stabilize stacked loads.
Industry Applications
TecPack Boxes excel in diverse sectors requiring reliable, reusable packaging:
Automotive & Manufacturing:

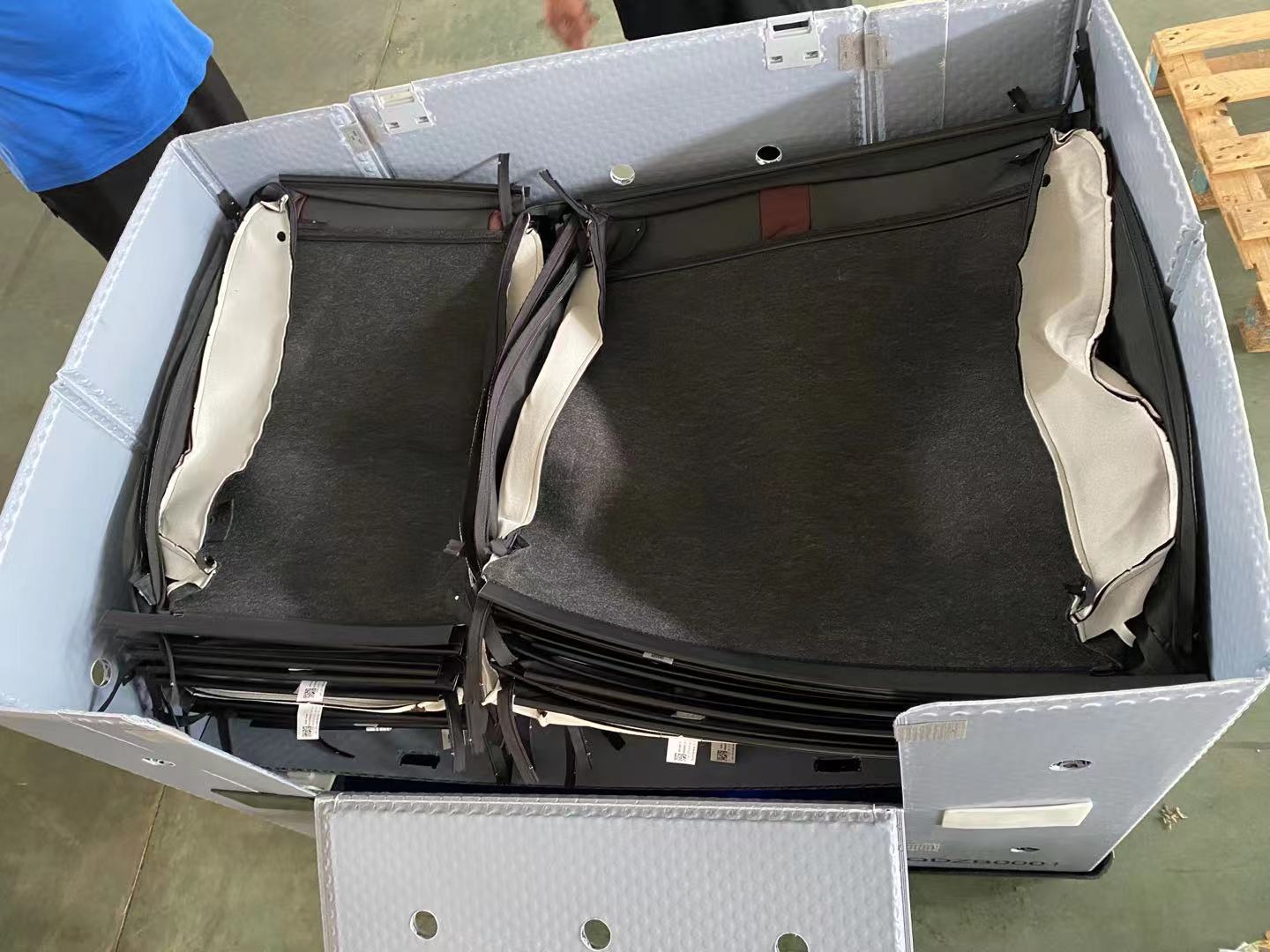

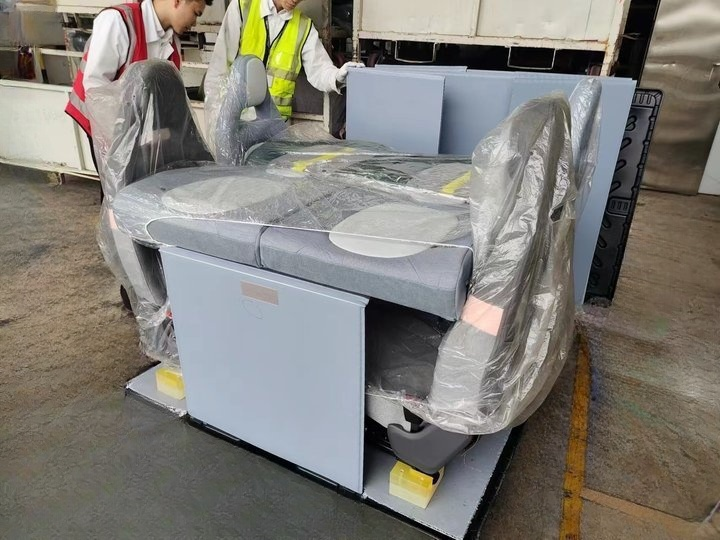

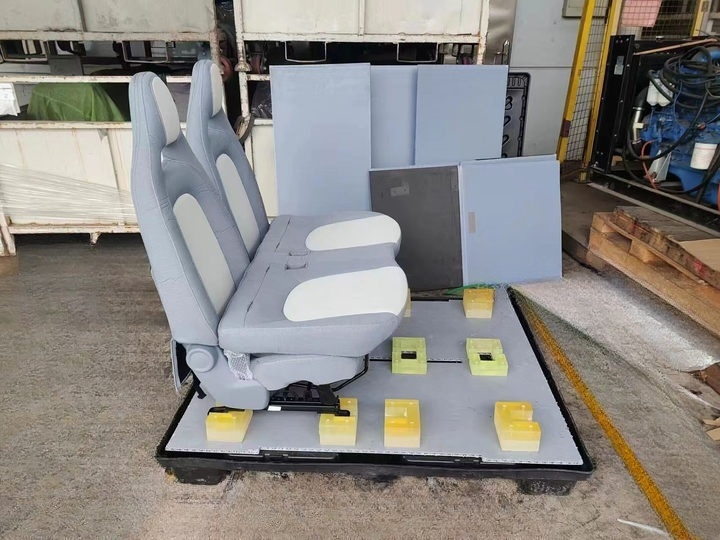

Safely transport engine parts, electrical components, and machinery.

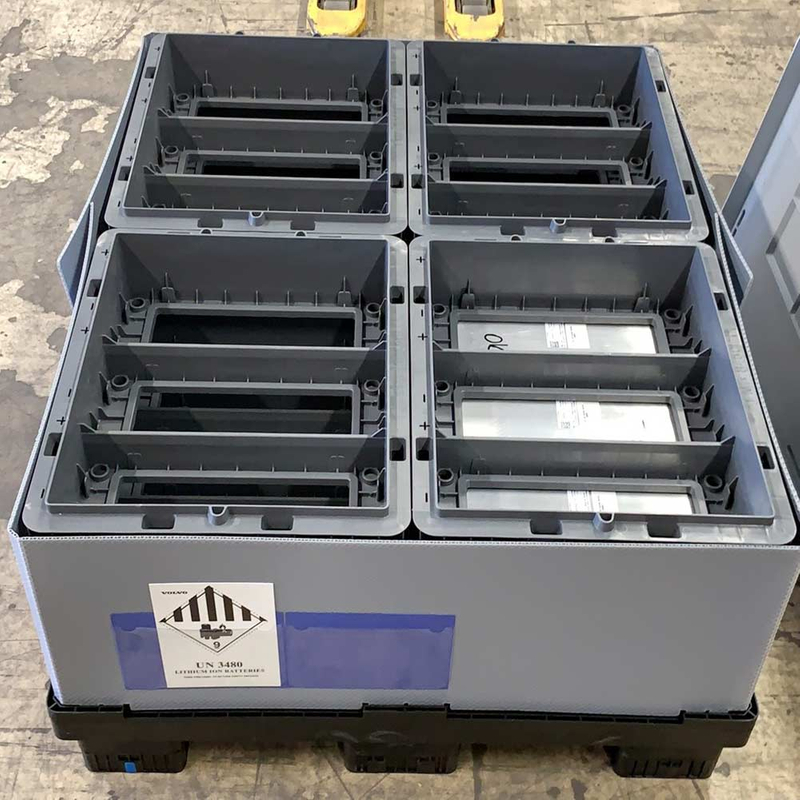

Example: Used by automotive giants like Volvo and Mobis for precision parts logistics.
Electronics:
Agriculture:
Logistics & Warehousing:
Cost & Sustainability Benefits
Why Choose TecPack Boxes?
Proven Reliability: Trusted by Fortune 500 companies like Samsung and global automotive suppliers.
Adaptability: Customize sizes (e.g., 48"x40", 1165x1165mm), liners, and base configurations (9-feet bottom or 3-runner designs).
Global Compliance: Meets ISO 14021 (recycled content) and food-grade safety standards for agricultural use.
In Summary: TecPack Boxes redefine industrial packaging by merging strength, efficiency, and sustainability.
Used in many fields, from car plants to farms, they keep your goods safe while cutting costs and waste. It’s proof that better boxes mean better business.
