Professional Plastic Containers for Automotive Parts Packaging
Designed to meet the precision and durability demands of automotive logistics, TecPack Boxes (also known as sleeve plastic boxes or pallet boxes with lids) offer a tailored, eco-friendly solution for transporting components ranging from delicate electronics to heavy engine parts. Trusted by global automotive giants, including Fortune 500 suppliers like Volvo, Mobis, and Samsung, these containers combine robustness, adaptability, and cost efficiency.
Item No. | HD-CM1208-BM |
Material: | HDPE(lid & pallet)+PP(honeycomb sheets) |
External DIM(mm): | 1200*800*500/760/ 860/1000/1050/... Any customized height |
Internal DIM(mm): | 1135*735*320/580/680/820/870/... External -180 |
Sleeve height(mm)： | Total height -120 |
Folded DIM(mm): | 1200*800*205 |
Pallet & lid weight: | 18 kg (pallet: 10.5kg + lid: 7.5kg) |
Pallet & lid production: | Blow molding |
Honeycomb sleeve: | 11.3mm 3.0kg/m2 | 11.3mm 4.0kg/m2 |
Static load: | 1+3 (1200kg),height<900mm 1+2 (1200kg),height>900mm | 1+3 (2000kg),height<900mm 1+2 (2000kg),height>900mm |
Dynamic load: | 1+2 (900kg),height<900mm 1+1 (900kg), height>900mm | 1+2 (1500kg),height<900mm 1+1 (1500kg),height>900mm |
Single box load: | 300Kg | 500Kg |
Folding times: | >30,000 times |
Temperature: | -20℃-55℃ |
Packing quantity: | 160 sets/20G | 400 sets/40H |
1. Product Design & Customization
TecPack Boxes are engineered for versatility and precision:
Standard Sizes: 1200×800mm, 1200×1000mm, 1100×1100mm, 1165×1165mm, and 48"x40" (Americas standard), with a base height of 800mm.
Full Customization: Tailor length, width, and height to match unique part dimensions or warehouse specifications.
Secure Lid System: Reinforced top and bottom lids ensure full protection against dust, moisture, and impacts.
2. Structural Strength & Sustainability
Built to withstand harsh industrial environments:
Panel Options: Choose between honeycomb panels (lightweight, high impact resistance) or grid panels (heavy-duty load capacity), both incorporating 30-50% recycled PP/HDPE for eco-compliance.
Extreme Durability: UV-stabilized and operational in temperatures from -55°C to 80°C, ideal for global supply chains.
3. Logistics Efficiency
Optimized for seamless integration into automotive workflows:
Space-Saving Design: Foldable with a 7:1 compression ratio, reducing empty return freight costs by 60%.
High-Density Loading: Up to 510 units fit into a 40’HQ container, with each crate weighing just 16 kg.
Stacking Stability: Interlocking corners and hump lids secure stacks up to 4 layers high, preventing shifting during transit.
4. Load Capacity & Handling
Engineered for reliability under extreme conditions:
Static Load: 1.2–2.0 tons (e.g., engine blocks, transmission systems).
Dynamic Load: 0.9–1.5 tons (e.g., shocks during road or rail transport).
Optimized Handling: Choose from 3 base configurations to match operational needs:
4-Way Forklift Access: Full accessibility for versatile warehouse handling.
9-Feet Bottom Structure: Enhanced stability for heavy loads and uneven surfaces.
3-Runner Base Design: Reinforced longitudinal runners for maximum load distribution.
5. Customized Interior Solutions
Tailored protection for every component:

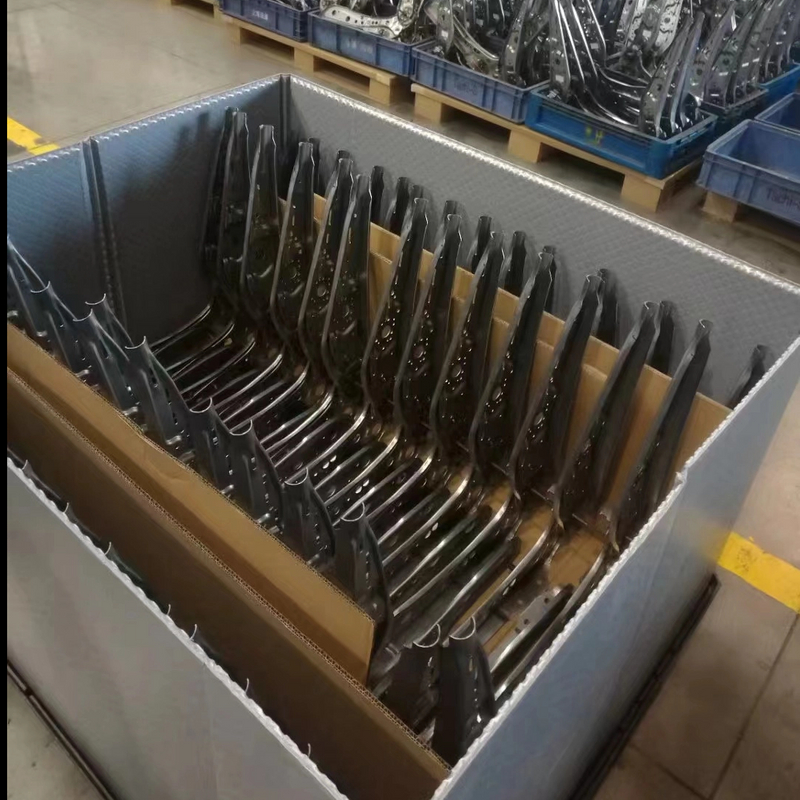

Modular Liners: Design EVA foam, corrugated dividers, or thermoformed trays to secure parts like sensors, gears, or fragile electronics.
Cost & Eco-Balance: Reusable liners cut waste, while materials like EPP (expanded polypropylene) offer lightweight, shock-absorbent protection.
Key Advantages
Space Efficiency: Collapsible design slashes storage needs.
Reusability: 100% returnable, with a lifespan exceeding 200 cycles.
Secure Handling: Lockable side doors and interlocking corners prevent accidental openings.
Trusted by Global Industry Leaders
TecPack Boxes are the backbone of automotive logistics for Fortune 500 partners across Europe and Asia, including Volvo, Mobis, and Samsung. These collaborations span over a decade, with clients praising their reliability in safeguarding high-value components across diverse climates and transport networks.
In Summary: Engineered for the rigor of automotive logistics, TecPack Boxes deliver unmatched protection, adaptability, and cost savings. As a proven partner to global industry leaders, we ensure your parts arrive intact, every time—because in automotive logistics, there’s no room for error.
