Rackable vs Stackable Plastic Pallets
A Complete Buyer’s Guide for Warehouse Racking Safety
Introduction: Why Rack Safety Failures Often Start with the Wrong Pallet
In warehouse operations, rack safety incidents are often attributed to overloaded shelves, improper installation, or forklift handling errors. However, in many real-world cases, the root cause begins much earlier—with the wrong pallet selection.
Plastic pallets are widely adopted for their durability, cleanliness, and consistency. Yet a critical misunderstanding persists:
not every plastic pallet is designed to be used on racking systems.
When pallets that are intended only for floor stacking or transport are placed on rack beams, the result is often gradual deflection, permanent deformation, or sudden failure. These issues may not appear immediately, but they accumulate over time—eventually leading to damaged goods, rack repairs, or serious safety risks.
This guide is written for warehouse managers, procurement teams, and logistics professionals who need to answer one essential question with confidence:
Can this plastic pallet be safely used on warehouse racking systems—now and over time?
What Does “Rackable” Actually Mean? (And What It Does NOT Mean)
In professional terms, a rackable plastic pallet is a pallet that is specifically engineered to be supported by horizontal rack beams, typically with support only at the pallet’s edges.
This definition sounds simple, but in practice it is often misunderstood or intentionally blurred in product descriptions.
What “Rackable” Means
A rackable pallet must be able to:
Maintain structural integrity when supported on rack beams
Limit deflection within safe tolerances under continuous load
Resist long-term deformation (material creep) over extended storage periods
What “Rackable” Does NOT Mean
A pallet being rackable does not mean:
It is simply thicker than other pallets
It has a higher static load rating
It is heavier or made of “stronger-looking” plastic
It can be placed on racks temporarily “without issues”
Thickness, weight, or appearance alone do not determine rackability. What matters is how the pallet behaves structurally when it is suspended across a span.
Rackable vs Stackable vs Nestable: Structural Intent Matters
To understand why misuse occurs so frequently, buyers must recognize that different pallet types are designed with different structural intentions.

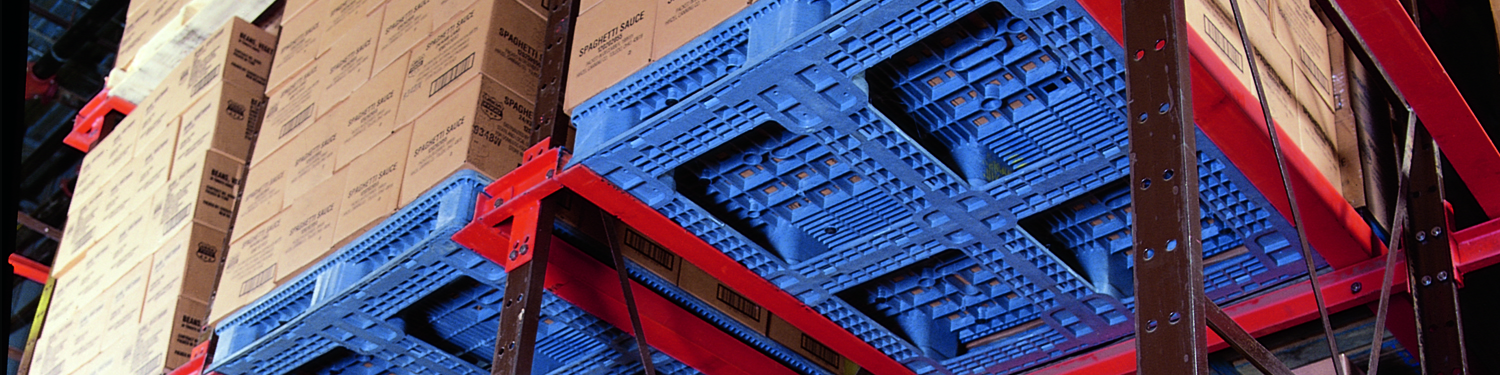

Rackable Plastic Pallets
Rackable pallets are engineered for beam-supported storage. They typically feature:
Runner bases that align with rack beams
Reinforced bottom structures
Optional steel bars to reduce bending
Defined racking load ratings
Their design assumes that the pallet will be elevated and supported at discrete points.

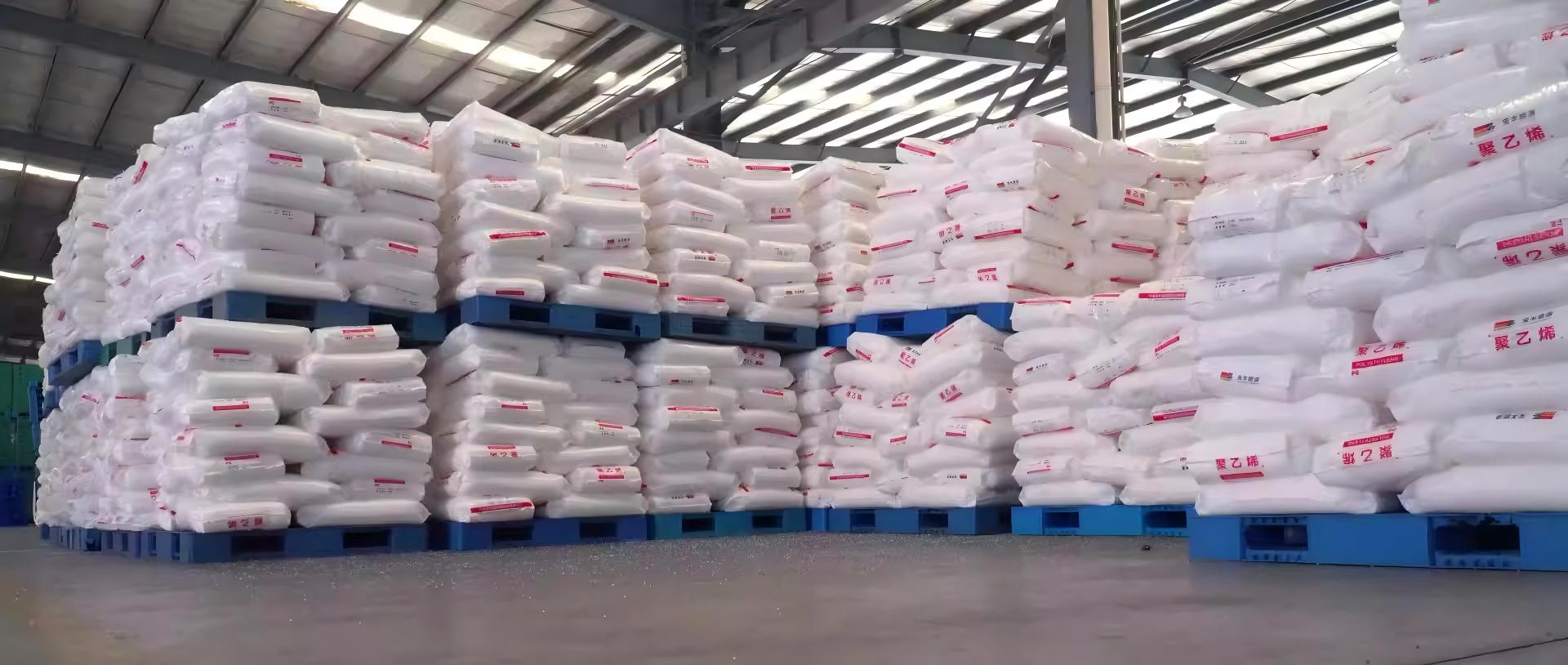

Stackable Plastic Pallets
Stackable pallets are designed primarily for floor stacking, where the load is transferred vertically through pallet-to-pallet contact. They rely on:
Corner supports
Vertical load paths
Flat ground support
When used on racks, these pallets lack the structural support needed to span open space between beams.
Nestable Plastic Pallets
Nestable pallets focus on space efficiency when empty. They are lightweight and optimized for transport or export but are generally not suitable for racking applications unless explicitly reinforced.
Why This Distinction Matters
Using a stackable or nestable pallet on racks is not a minor misuse—it is a structural mismatch. The pallet is being asked to perform a function it was never designed to handle.
Over time, this mismatch leads to:
Racking Load Explained in Plain Language (For Buyers, Not Engineers)
Among all pallet specifications, racking load is the most critical—and most misunderstood—parameter for warehouse storage.
What Is Racking Load?

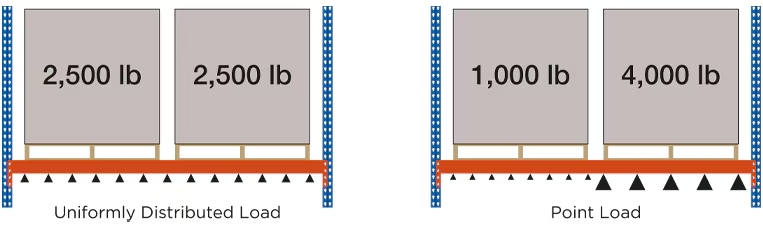

Racking load refers to the maximum weight a pallet can support when placed on rack beams, typically supported only at two edges.
This condition is fundamentally different from:
Static load, where the pallet rests fully on the floor
Dynamic load, where the pallet is supported evenly while being moved

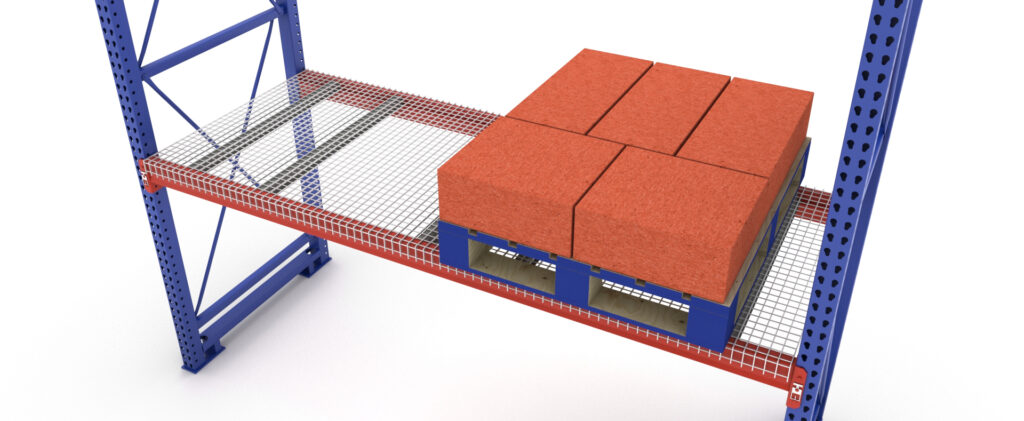

In racking, the pallet must span a gap between beams, carrying the full weight of goods while resisting bending.
Why Static and Dynamic Load Ratings Are Not Enough
Many pallets that perform well under static or dynamic conditions fail in racking applications because:
Load is concentrated over a longer unsupported span
Stress is continuous, not temporary
Plastic materials experience creep, meaning they deform slowly under constant load
For warehouse storage, racking load is the only load rating that directly reflects real conditions.

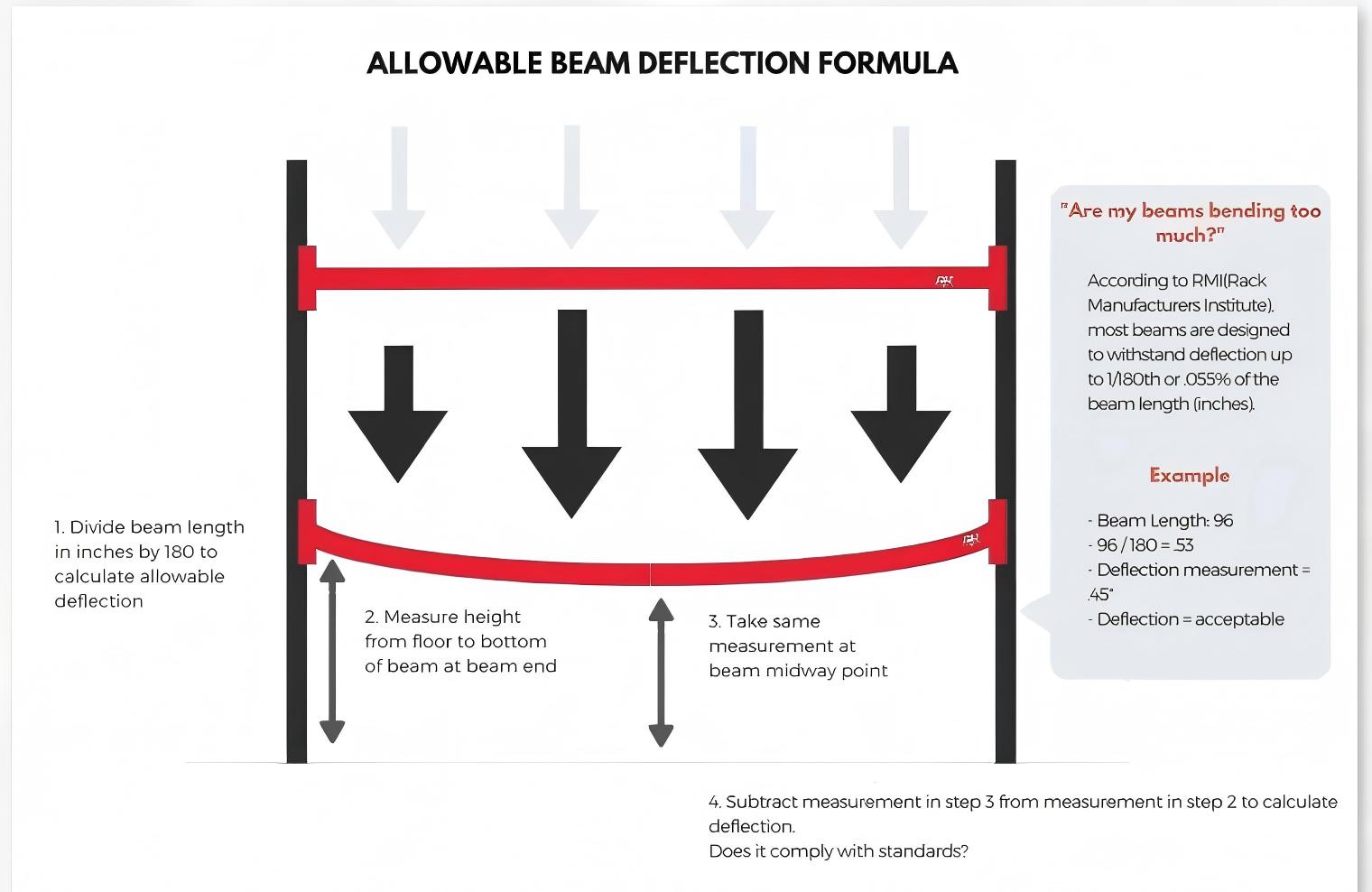

Beam Span, Deflection, and Long-Term Deformation
Two factors largely determine whether a pallet will remain safe on racks over time: beam span and deflection behavior.
Beam Span
Beam span refers to the distance between rack supports. The wider the span:
Even a pallet rated for a certain racking load may fail if the beam span exceeds the design assumption.
Deflection and Material Creep
Plastic materials, unlike steel, exhibit creep—a slow, permanent deformation under sustained load.
This means:
A pallet may appear stable when first loaded
Deflection may increase gradually over weeks or months
Permanent sagging can occur without any visible warning signs
This is why temporary performance is not a reliable indicator of long-term safety in racking systems.
Structural Features of True Rackable Plastic Pallets
Rackable performance is achieved through intentional structural design, not cosmetic features.
Key characteristics of true rackable pallets include:
Runner-based bottom designs that align with rack beams

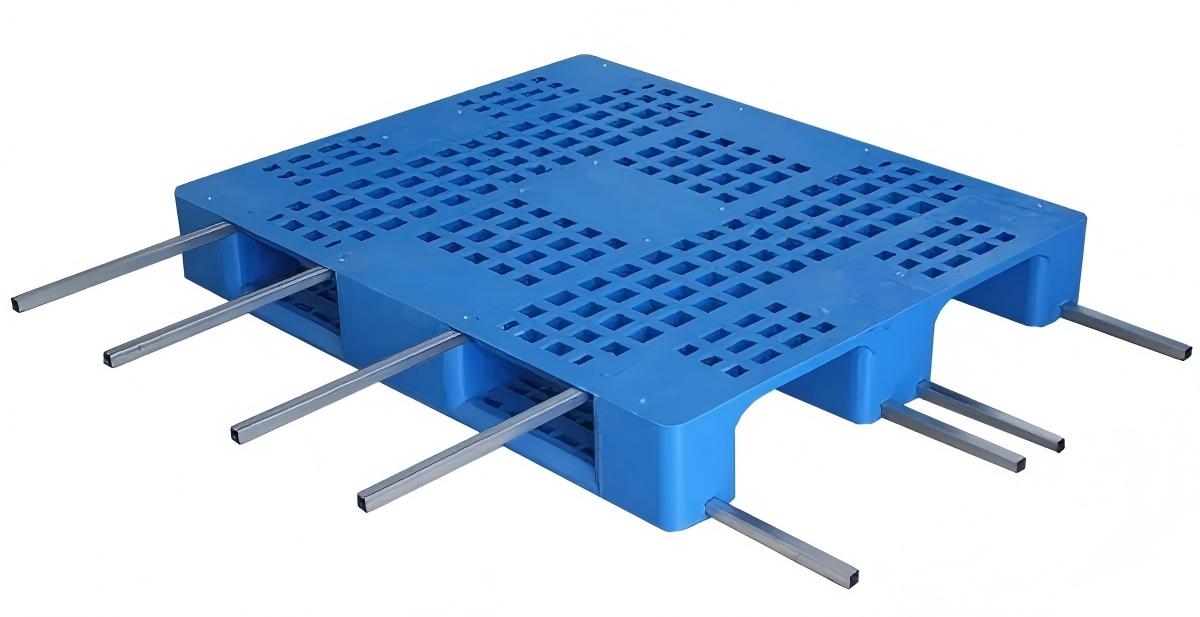

Steel reinforcement bars embedded to limit deflection
Ribbed deck structures that distribute load evenly
Controlled deflection limits verified under racking conditions
A pallet without these features may still function well on the floor—but that does not make it suitable for racks.
Rackable vs Stackable Plastic Pallets
A Complete Buyer’s Guide for Warehouse Racking Safety
Which Warehouse Racking Systems Require Rackable Pallets?
Not all warehouse racking systems place the same demands on pallets. However, most modern racking systems require pallets that are explicitly rackable.

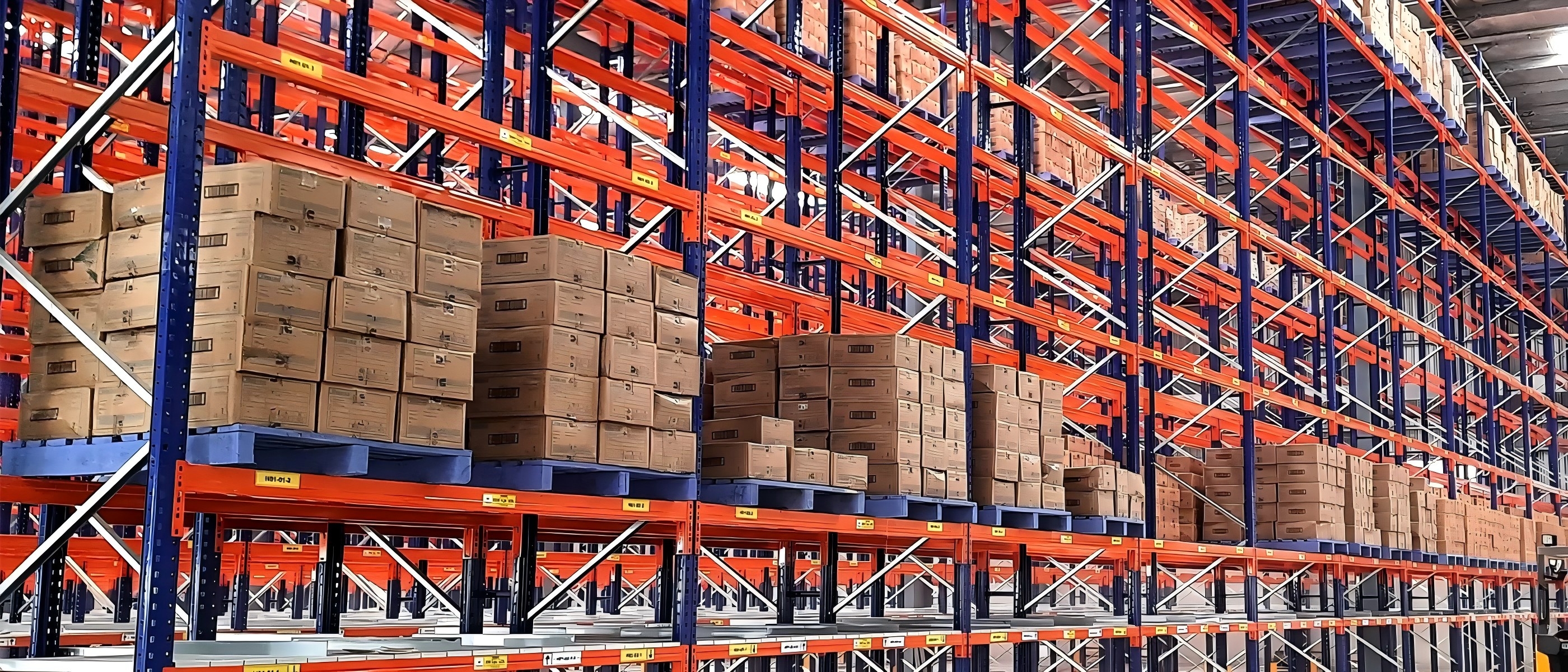

Selective Racking Systems
Selective racking is the most common system worldwide—and also the system where pallet misuse occurs most frequently.
In selective racking:
Pallets are supported only by front and rear beams
Load is suspended across a horizontal span
Any pallet deflection directly affects rack safety
For this system, rackable pallets with verified racking load ratings are essential.

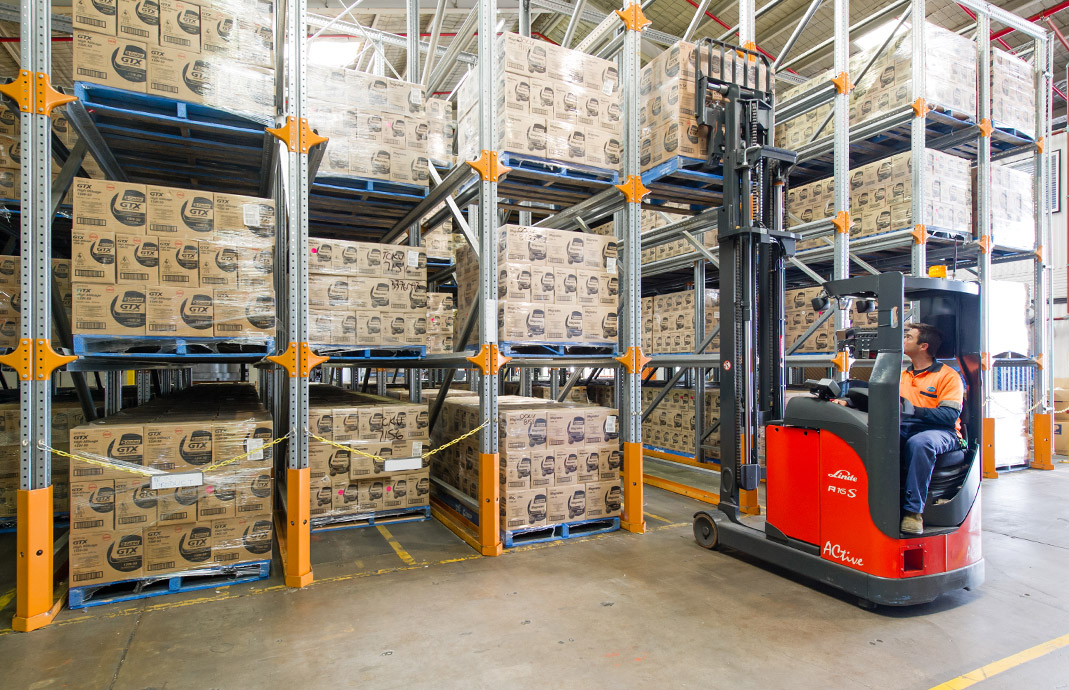

Drive-In and Drive-Through Racking
Drive-in and drive-through systems expose pallets to:
In these systems, pallets must not only be rackable but also structurally reinforced to handle repeated mechanical stress.

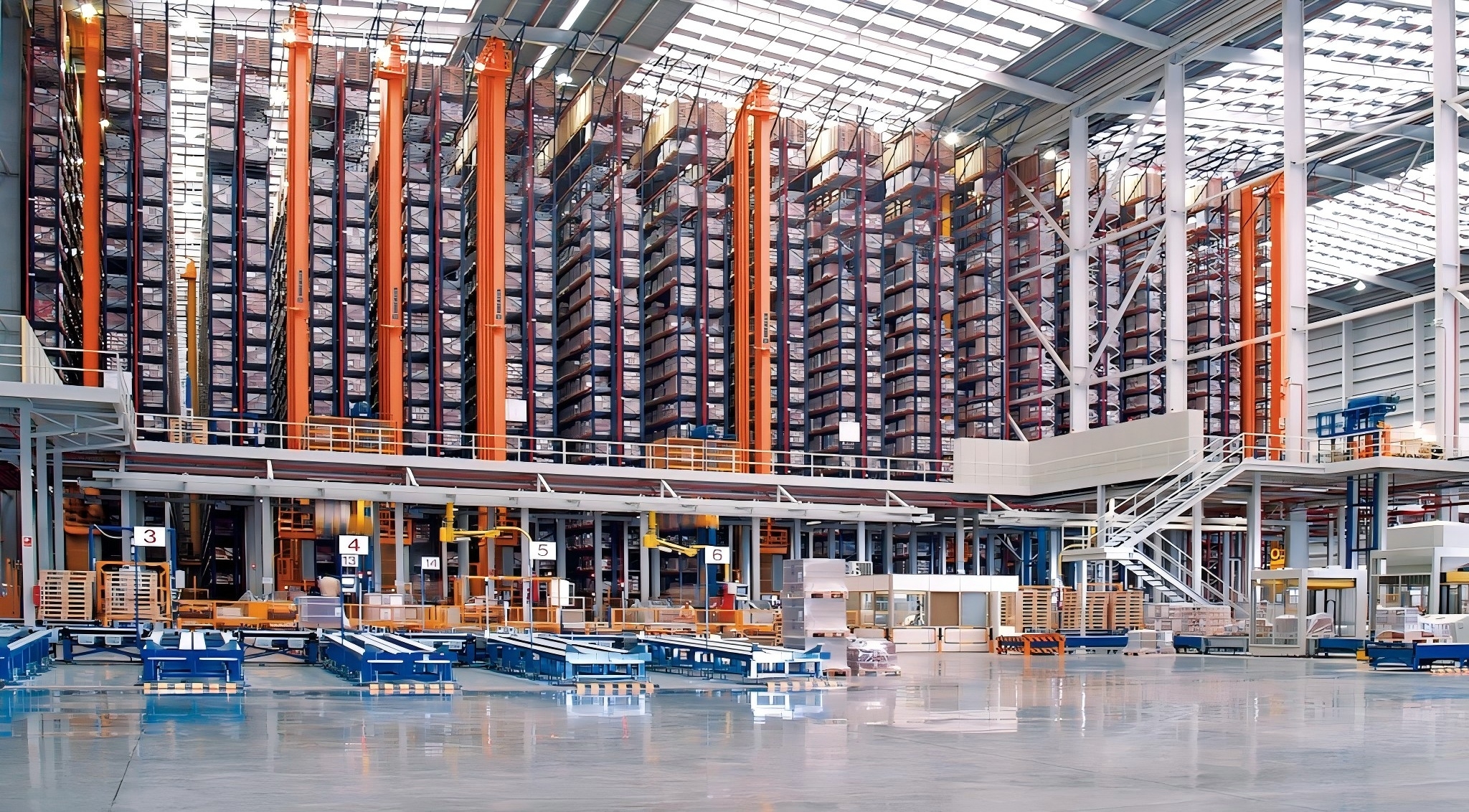

High-Bay and Automated Storage (AS/RS)
Automated systems introduce a new level of precision and risk:
Pallet deflection can interfere with automation
Dimensional instability may cause system errors
Even small deformation can disrupt operations
For AS/RS environments, pallets must meet strict rackability and consistency standards.
Industry Scenarios: When Rackable Pallets Are Non-Negotiable
Certain industries cannot compromise on rackable pallet performance.
Automotive and Industrial Manufacturing
Heavy components
Long storage cycles
Closed-loop logistics
Rackable pallets with steel reinforcement are typically mandatory.
FMCG and Retail Distribution
High throughput
Frequent pallet movement
Mixed load profiles
Stable rackable pallets reduce damage, improve picking safety, and support operational efficiency.
Cold Storage and Temperature-Controlled Warehouses
Low temperatures increase material brittleness and accelerate creep effects.
For cold storage, rackable HDPE pallets with proven low-temperature performance are strongly recommended.
The Hidden Cost of Using Stackable Pallets on Racks
One of the most dangerous assumptions in warehousing is:
“It seems fine for now.”
Using stackable pallets on racks may not cause immediate failure, but over time it leads to:
Progressive pallet sagging
Reduced load stability
Increased stress on rack beams
Higher risk of sudden collapse
The Real Cost Breakdown
Pallet replacement due to permanent deformation
Rack inspection and repair costs
Operational downtime during corrective actions
Safety liabilities in the event of accidents
In many cases, these indirect costs far exceed the price difference between stackable and rackable pallets.
How to Evaluate a Rackable Plastic Pallet: Buyer’s Checklist
Before purchasing pallets for racking applications, buyers should confirm the following:
Is a clear racking load rating provided?
Is the rating specified for a defined beam span?
Does the pallet include steel reinforcement, if required?
Is the pallet designed specifically for rack beam support?
Are there real application cases in similar warehouses?
Has long-term deflection been considered, not just initial performance?
Is the material suitable for the operating temperature range?
Does the supplier understand your specific racking system?
A supplier that cannot clearly answer these questions is unlikely to provide a safe solution.
Why Supplier Experience Matters More Than Pallet Specs
Pallet specifications alone do not guarantee rack safety.
Experienced suppliers:
Ask detailed questions about racking systems
Match pallet design to real operating conditions
Understand long-term deformation behavior
Provide recommendations based on application, not just catalogs
At Huading, rackable pallet recommendations are made with a system-level perspective, ensuring compatibility with warehouse racking, load profiles, and operational realities.
Conclusion: Rack Safety Is a System Decision, Not a Product Decision
Rack safety depends on how pallets, racks, loads, and handling equipment work together as a system.
Choosing a rackable plastic pallet is not simply a purchasing decision—it is a risk management decision that protects inventory, infrastructure, and people.
Call to Action
If your pallets will be used on warehouse racking systems, do not rely on assumptions.
Share your racking type, beam span, load weight, and storage conditions with Huading.
Our team will help you identify rackable plastic pallet solutions designed for safe, long-term warehouse storage.
