A practical, buyer-focused guide for warehouse managers, procurement teams, and logistics professionals.

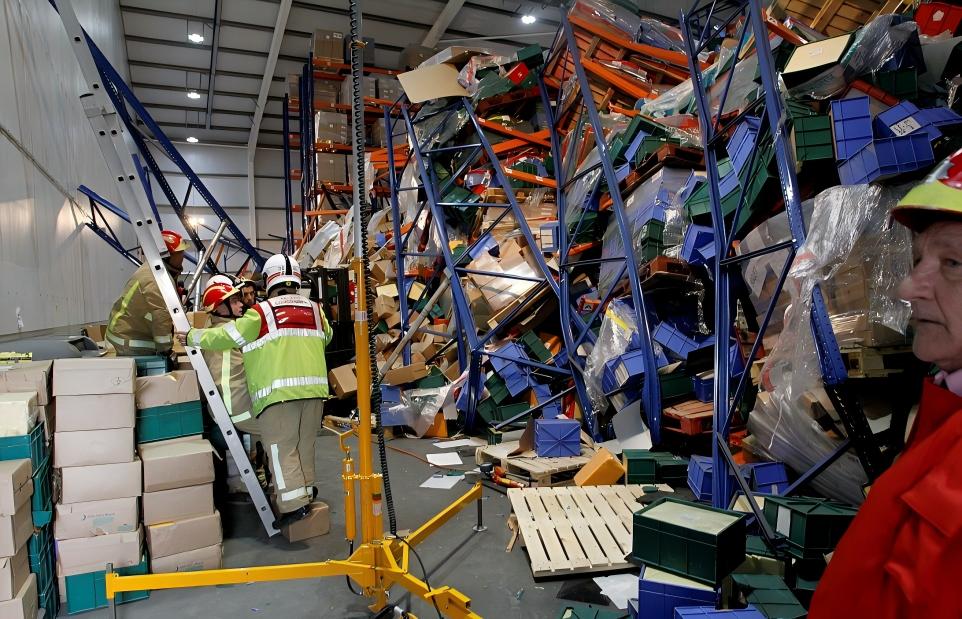

Choosing a Pallet Is a Racking Safety Decision
When buyers select plastic pallets for warehouse use, the focus is often placed on surface-level specifications—dimensions, static load, or price per unit. In many cases, pallet selection is treated as a simple purchasing decision rather than a structural one.
However, in racking applications, choosing a plastic pallet is fundamentally a warehouse safety decision.
Most racking-related incidents do not begin with a sudden overload or an obvious mechanical failure. Instead, they develop gradually as pallets that were never designed for racking are placed on rack beams and left under sustained load. Over time, deflection increases, structural integrity weakens, and the risk of collapse grows—often without visible warning signs.
This is why understanding how to choose the right plastic pallet for warehouse racking systems is not optional for procurement teams, warehouse managers, or logistics professionals. The cost of a wrong decision is not limited to pallet replacement; it extends to damaged goods, rack repairs, operational downtime, and safety liabilities.
In a previous guide, we explained the structural differences between rackable and stackable plastic pallets. This article builds on that foundation and focuses on the next critical question:
How do you choose the right rackable plastic pallet for your specific racking system and operating conditions?
Step 1: Identify Your Racking System Before You Look at Any Pallet
One of the most common mistakes buyers make is evaluating pallets before fully understanding their racking system. In reality, the racking system determines how the pallet is loaded, supported, and stressed.
Different racking systems impose very different demands on pallets, even when the same goods are stored.
Selective Racking Systems
Selective racking is the most widely used warehouse racking system globally—and also the system where pallet misuse is most common.
In selective racking:
Pallets are supported only by front and rear horizontal beams
The pallet must span an open gap with no center support
The entire load is suspended across the beam span
This creates a bending force that acts continuously on the pallet during storage. Even minor deflection can compromise load stability and rack alignment over time.
For selective racking, pallets must be:
Explicitly rated for racking load
Structurally designed to limit deflection
Compatible with the specific beam spacing used in the warehouse
Using stackable or floor-only pallets in selective racking is a structural mismatch that significantly increases long-term risk.
Drive-In and Drive-Through Racking Systems
Drive-in and drive-through racking systems introduce additional challenges beyond static support.
In these systems:
Forklifts enter the rack structure
Pallets experience higher impact during loading and retrieval
Loads may be supported over longer unsupported spans
Pallets used in drive-in systems must withstand not only sustained racking loads but also repeated mechanical stress. Structural reinforcement becomes particularly important in these environments.
Without proper design, pallets may deform faster, leading to misalignment and increased collision risk inside the rack lanes.
Push-Back and Pallet Flow Racking
In gravity-assisted systems such as push-back or pallet flow racking:
Pallets move along rails or rollers
Load distribution may shift during movement
Dimensional consistency is critical for system reliability
Pallet deflection or deformation can interfere with smooth pallet flow, causing jams or uneven movement. In these systems, rackable pallets must combine structural rigidity with consistent geometry.
High-Bay and Automated Storage (AS/RS)
Automated storage and retrieval systems place the highest demands on pallet performance.
In AS/RS environments:
Pallets interact directly with automated handling equipment
Even small dimensional changes can cause system errors
Long-term deflection can disrupt automation accuracy
For these systems, pallets must meet strict rackability standards and maintain dimensional stability over extended periods. Any deformation that might be tolerable in manual systems can become a critical issue in automated environments.
Key takeaway:
Before evaluating any pallet specification, buyers must clearly identify their racking system. A pallet that performs well in one system may be completely unsuitable in another.
Step 2: Understand Beam Span and Support Conditions
Once the racking system is identified, the next critical factor is beam span.

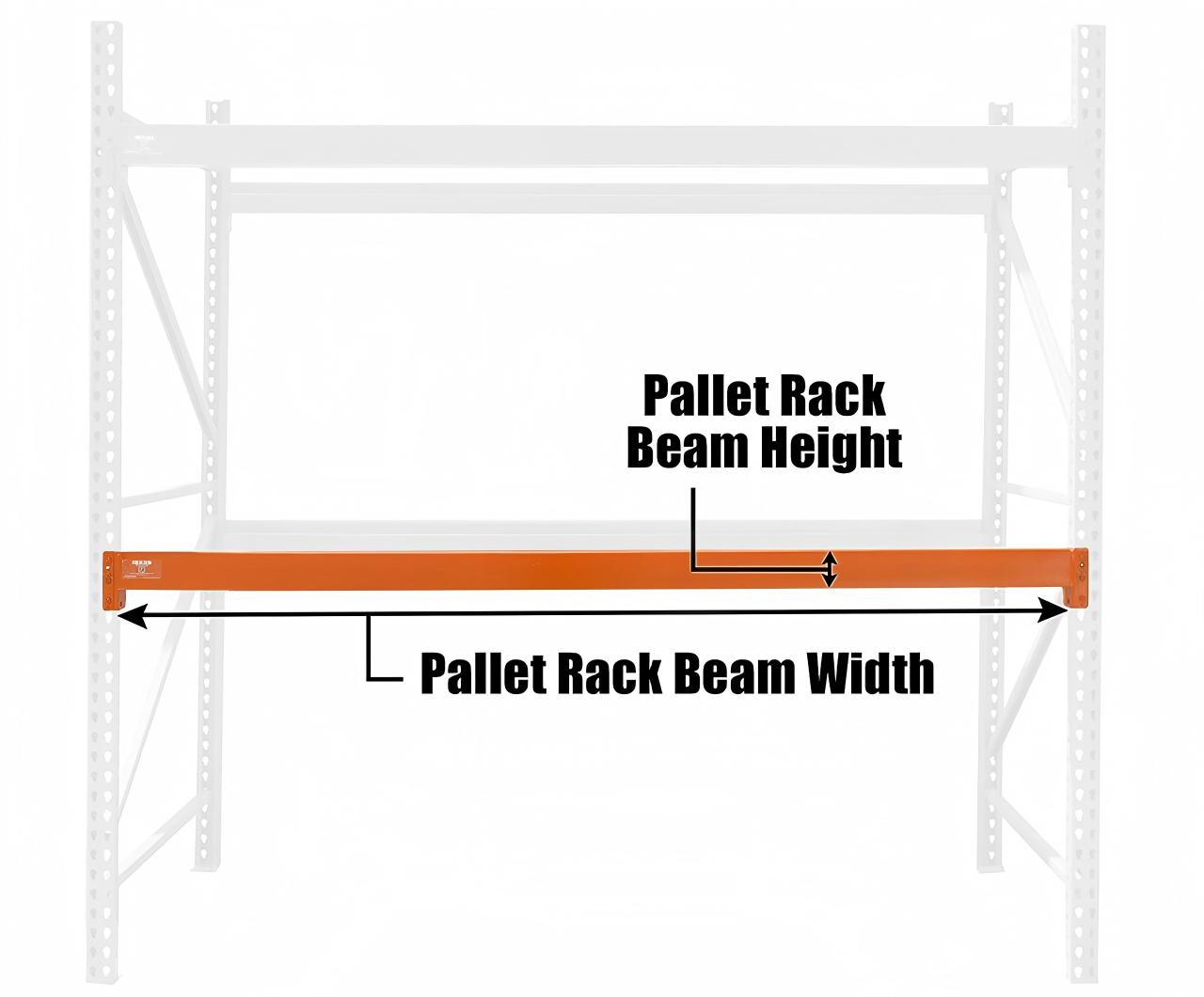

What Is Beam Span?
Beam span refers to the distance between the rack beams that support the pallet. This distance determines how much of the pallet is unsupported during storage.
As beam span increases:
Bending force on the pallet increases
Deflection becomes more pronounced
Long-term deformation risk rises significantly
Two warehouses may use identical pallets and store the same goods, yet experience very different outcomes simply because their beam spacing differs.
Why Beam Span Is Often Overlooked
Beam span is frequently overlooked because:
It is not always documented clearly
Buyers assume standard spacing
Pallet suppliers may not ask about it
However, even small differences in beam spacing can dramatically change how a pallet behaves under load.
A pallet rated for racking at a specific span may exceed safe deflection limits if used across a wider span than intended.
Temporary Stability Is Not Long-Term Safety
One of the most misleading indicators in racking applications is initial performance.
A pallet may:
Appear stable when first placed on the rack
Show no visible deformation during the first days or weeks
Still be accumulating structural stress over time
Plastic materials deform gradually under sustained load. This means that “it looks fine” is not a reliable safety indicator.

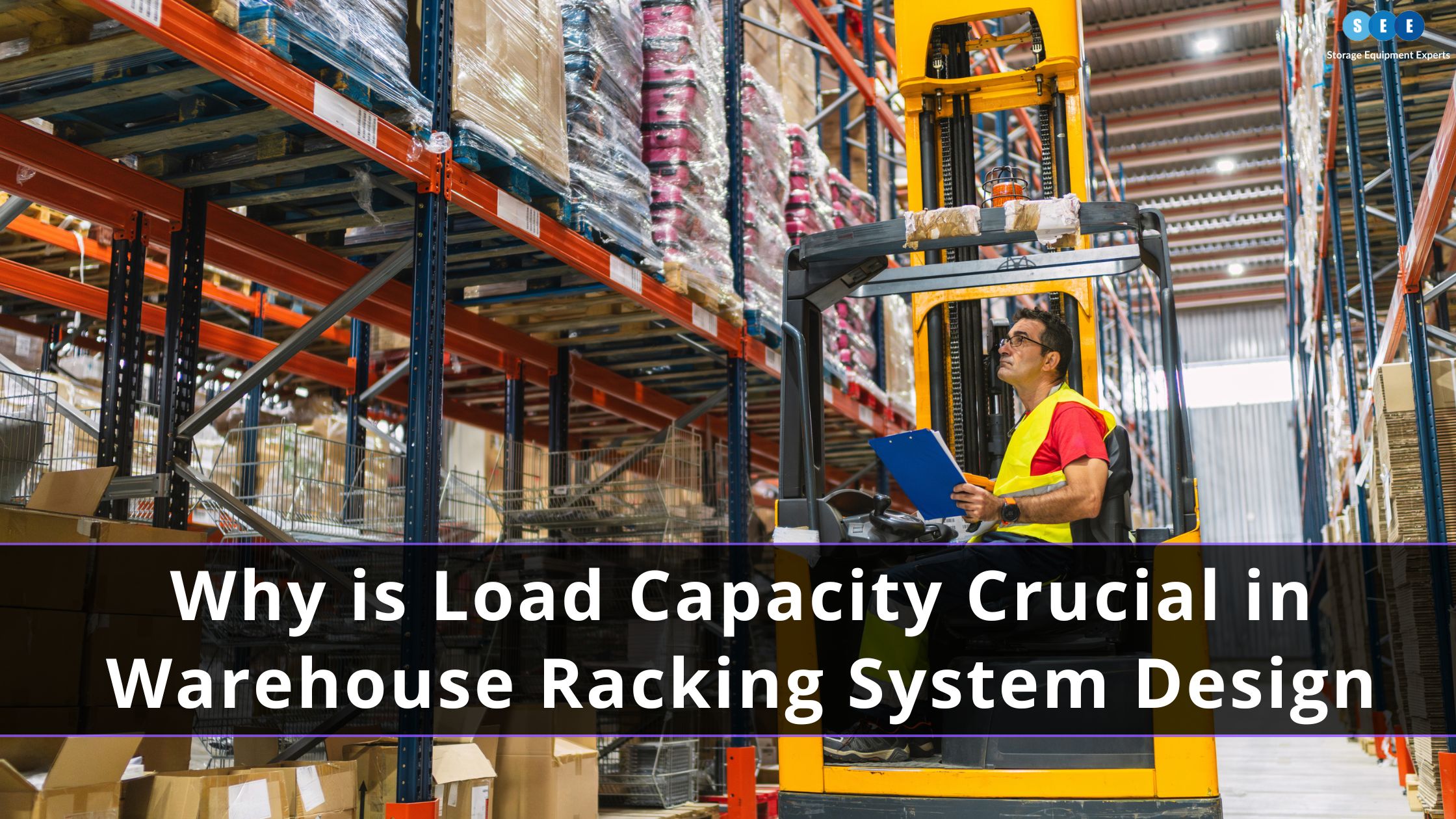

Step 3: Racking Load vs Static Load — Which One Actually Matters?
Among all pallet specifications, load ratings are the most misunderstood—and most frequently misused.
The Three Common Load Ratings
Plastic pallet specifications typically include three load ratings:
Static load: Maximum weight supported when the pallet rests fully on the floor
Dynamic load: Maximum weight supported while being moved by a forklift or pallet jack
Racking load: Maximum weight supported when the pallet is suspended on rack beams
Only one of these directly reflects racking conditions.
Why Static and Dynamic Load Ratings Are Misleading for Racks
Static and dynamic loads assume full or evenly distributed support. In racking applications, this assumption does not hold.
In racking:
Support is limited to two or more narrow contact points
Load is suspended across a span
Stress is continuous rather than temporary
A pallet with an impressive static load rating may still fail in racking if it lacks sufficient structural rigidity.
Why Racking Load Is Often Missing or Vague
Buyers frequently encounter pallet specifications where:
Racking load is not listed
The rating is provided without beam span context
Conditions of testing are unclear
This is not accidental. Racking load is more difficult to verify and requires application-specific evaluation.
When racking load information is vague or absent, buyers should treat this as a warning sign rather than a minor omission.
How Buyers Should Interpret Racking Load Data
When evaluating racking load ratings, buyers should confirm:
The beam span used during testing
Whether the load rating accounts for long-term storage
Whether deflection limits were measured, not just failure points
Racking load is meaningful only when tied to real operating conditions.

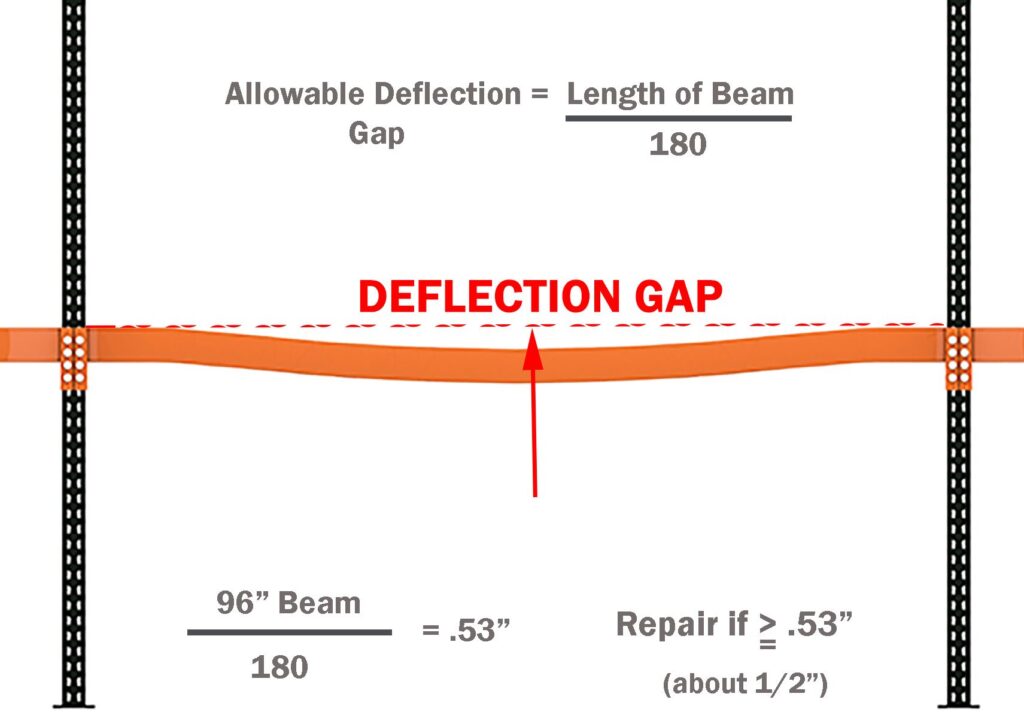

Step 4: Why Long-Term Deflection Matters More Than Initial Strength
Plastic pallets behave very differently from metal structures under sustained load.
Understanding Material Creep
Plastic materials exhibit a phenomenon known as creep, which refers to slow, permanent deformation under constant stress.
In practical terms:
A pallet may support a load today without visible issues
Over time, the same load causes increasing deflection
Permanent sagging may occur even without overload
This behavior is especially critical in racking applications, where loads remain static for extended periods.
Deflection Is a Safety Indicator, Not a Cosmetic Issue
Excessive deflection affects:
Ignoring deflection because “the pallet has not broken” is a dangerous misconception. Deflection is often the first visible sign of structural fatigue.
Why Initial Load Tests Are Not Enough
Some pallets are evaluated only for short-term load performance. While these tests can demonstrate immediate strength, they do not reflect long-term behavior.
For racking applications, buyers should prioritize:
Controlled deflection limits
Long-duration load testing
Proven performance in similar warehouse environments
Step 4 (Continued): Structural Design Determines Rack Performance
Beyond material behavior, the structural design of the pallet plays a decisive role in racking performance. Two pallets made from the same plastic can behave very differently on racks depending on how they are engineered.
Runner-Based vs Block-Based Pallet Structures
Most rackable plastic pallets fall into one of two structural categories: runner-based or block-based designs.
Runner-based pallets use longitudinal runners at the bottom of the pallet. These runners align directly with rack beams, allowing the load to be transferred efficiently into the racking structure. This design significantly reduces unsupported spans and helps control deflection.
Block-based pallets, by contrast, rely on multiple support blocks. While they can perform well in floor stacking or certain conveyor systems, block pallets require careful evaluation before use on racks. Without proper reinforcement or beam support compatibility, they may experience uneven load distribution when suspended.
For selective racking systems, runner-based designs are generally preferred due to their predictable support geometry.
Two-Runner vs Three-Runner Designs
Among runner pallets, buyers often encounter two-runner and three-runner configurations.
Two-runner pallets provide support along two longitudinal edges. They can be suitable for racking when properly reinforced and when beam spacing is compatible.
Three-runner pallets introduce a central runner, which improves load distribution and reduces bending stress.
In applications involving heavier loads, longer beam spans, or extended storage durations, three-runner designs typically offer improved safety margins.
The Role of Steel Reinforcement
Steel reinforcement bars are commonly used in rackable plastic pallets to limit deflection under load.
However, reinforcement should not be treated as a universal solution.
Steel bars:
At the same time, reinforcement adds weight and cost, and may not be necessary for all applications. The decision to use steel reinforcement should be based on racking load requirements, beam span, storage duration, and operating conditions—not on assumptions.
Step 5: Material Matters — HDPE vs PP in Racking Applications
Material selection becomes increasingly important when pallets are used on racks.
HDPE (High-Density Polyethylene)
HDPE is widely used for rackable plastic pallets due to its balanced mechanical properties.
Key characteristics include:
HDPE pallets are commonly preferred in:
Long-term storage applications
Cold storage environments
High-load racking systems
PP (Polypropylene)
PP offers advantages in stiffness and weight reduction but behaves differently under sustained load.
While PP pallets may perform well in short-term or dynamic applications, they require careful evaluation for racking use—especially in environments with extended storage periods or temperature fluctuations.
Material choice should always be matched to actual working conditions, not just catalog specifications.
Temperature and Long-Term Storage Considerations
Temperature plays a critical role in material behavior.
Low temperatures increase brittleness
High temperatures accelerate creep
Temperature cycling can amplify deformation over time
For warehouses with temperature-controlled environments, material selection becomes a key component of racking safety.
Step 6: Load Type, Storage Duration, and Real Working Conditions
Even the best-designed pallet can fail if operating conditions are misunderstood.

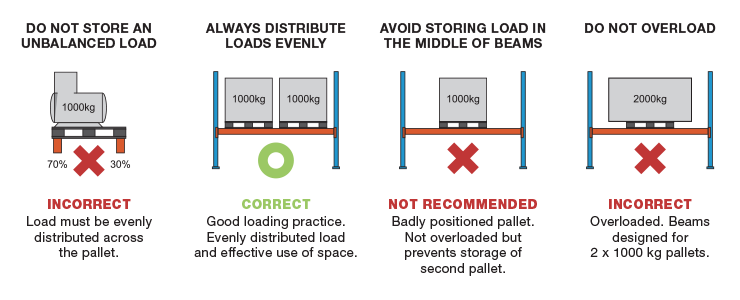

Load Distribution: Uniform vs Point Loads
Loads that appear acceptable by weight alone may still create localized stress.
Examples include:
In racking systems, uneven load distribution increases deflection and accelerates deformation.
Storage Duration: Short-Term vs Long-Term
Storage duration directly affects pallet behavior.
Pallets used for weeks or months under sustained load must be evaluated differently from pallets used for rapid turnover.
Handling Practices and Real-World Variability
Forklift handling, pallet rotation practices, and stacking habits all influence pallet performance.
Real-world conditions are rarely ideal. This is why pallets selected for racking should include a safety margin that accounts for variability in daily operations.
Common Buyer Mistakes When Selecting Pallets for Racks
Despite available technical information, buyers continue to make similar mistakes.
Mistake 1: Assuming Past Use Guarantees Future Safety
Statements such as:
“We have used this pallet before without problems”
often ignore changes in:
Load weight
Storage duration
Racking configuration
What worked under one set of conditions may not be safe under another.
Mistake 2: Focusing on Price Instead of Structure
Price-driven decisions often lead buyers to select pallets that meet minimum requirements but lack adequate safety margins.
In racking applications, the cost of failure far exceeds the cost difference between pallet designs.
Mistake 3: Treating Pallets as Generic Accessories
Pallets are sometimes treated as interchangeable logistics accessories rather than structural components.
In reality, pallets function as load-bearing elements within the racking system. Treating them as generic items increases systemic risk.
Buyer Checklist: How to Verify a Pallet Is Truly Rackable
Before committing to a pallet for racking use, buyers should be able to answer the following questions clearly:
Is a racking load rating explicitly provided?
Is the rating defined for a specific beam span?
Does the pallet design align with the racking system type?
Are reinforcements included where required?
Has long-term deflection been evaluated?
Is the material suitable for the operating temperature?
Are there proven application cases in similar warehouses?
Does the supplier understand your actual working conditions?
If these questions cannot be answered clearly, the pallet choice involves unnecessary risk.
Why Working With an Experienced Supplier Matters
Pallet specifications alone do not guarantee safe racking performance.
An experienced supplier:
Evaluates the entire racking system
Matches pallet design to real load conditions
Considers long-term behavior, not just initial strength
Provides recommendations based on application, not catalog limitations
This system-level perspective is essential for managing risk in warehouse storage environments.
The Right Pallet Protects More Than Your Goods
Choosing a plastic pallet for racking systems is not simply a procurement task—it is a decision that affects safety, efficiency, and long-term operational stability.
The right rackable plastic pallet:
Maintains structural integrity over time
Supports safe and efficient warehouse operations
Reduces the risk of costly failures and disruptions
By understanding racking systems, load conditions, material behavior, and structural design, buyers can make informed decisions that protect both assets and people.
If your plastic pallets will be used on warehouse racking systems, do not rely on assumptions or incomplete specifications.
Share your racking type, beam span, load requirements, and storage conditions with Huading.
Our team will help you identify rackable plastic pallet solutions designed for safe, long-term warehouse storage.
