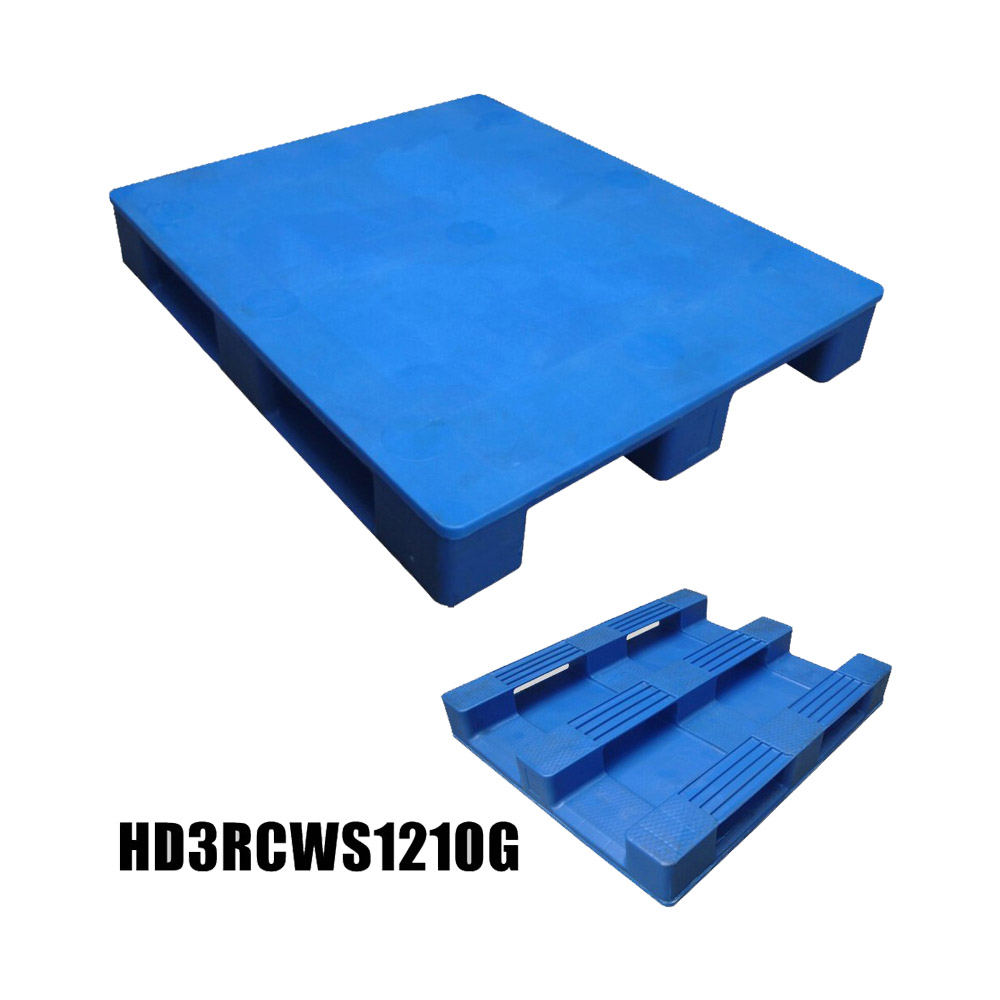

HD3RCWS1210G
No mark
Availability: | |
---|---|
Quantity: | |
Specification: | 1200×1000×150 mm | |||
Load Capacity: | Static Load:6T | Dynamic Load:1.5T | Racking Load:1 T | |
Unit Weight | 25.11±0.5kg | |||
Material | HDPE or PP | |||
Usage temperature | -25℃~40℃ | |||
Colour | According to customer demand | |||
Mark | Integrated printing | |||
silk screen printing | ||||
Structure characteristic: | Deck type | Closed decks | ||
Bottom type | 3 runners | |||
Reinforcement | Decks: reinforced by 5pcs steel tubes | |||
Bottom: / | ||||
production process | Injection Molding,Sweating Soldering |
1、Product Feature
1).Plastic pallets with 3 runners bottom are widely used for transportation and storage.
2).They have corrosion resistance, non-absorbent,moth-proof and other excellent feature,so they adequately protect cargoes.
3).With irreplaceable advantages of wooden pallets : Moisture proof, mouldproof, no nails, no thorns, no pests, flaky, recyclable, safety and health, etc.
4). 4 ways,applicable for transposition by hand pallet trucks and forklift
5).Pallets are made of HDPE, poisonless and harmless
6).Flat surface Protect the goods from damage.
7) Pallets with closed deck are easy to clean since it's designed as smooth surface without dead angle of hygiene residue.
So they are widely used in the food and pharmaceuticals industries.
8).Pallets reinforced by steel tubes,which increase load capacity of pallets,and make pallets perform better in handling heavy -duty goods and on racks.
9).All the reinforced steel tubes are assembled completely inside of pallets,which avoid of rust in long time use.
10).Pallets decks adopt surface galling treatment,which improve surface friction properties and avoid cargoes sliding down.
11). Entry height up to 120mm,which meet requirement of stacker crane in automated stereoscopic warehouse
2、Advantages
1) Round and chamfered edge of entry design is more easier for accessing goods
2) Crossed steel tubes in the upper decks increase load capacity,and reinforced steel tubes at the bottom runners improve pallets’ resistance ability to bending,and reduce pallets’ deformation rates on the racks,then they will perform better in automated stereoscopic warehouse. Built-in steel tubes could resist rusty caused by wet.
3) . Bar code label location reserved at the 4 sides, Label flute is 5mm deep and 70mm long. Middle part of the size 1000mm has been frosted,so they are diffuse reflector,it is easy for laser scanner to identify pallets.
4). Pallets’decks have been frosted,which will stop slipping when empty pallets stacked layers by layers.
5).The antiskid design at bottom endows the pallets with excellent antiskid property, avoid of pallets packed with cargoes slip on smooth surface.
5) Sweating Soldering
A) Pallets have deck and bottom 2 parts,they are made by injection molding separably.
Inner part of deck and bottom are designed latticed,which improve physical properties,but surface could still be smooth,then excellent physical properties and hygiene request all could be meet.
B) Grooves for steel tubes reserved in upper decks and bottom structures,thickness of steel tubes could be changed to meet different load capacity request. Steel tubes fit the grooves perfectly,so they would not loose after welding in use.
3、Others:
1)Surface
Surface shall be level and smooth, no cracking and deformation , of unified hue
2)color
No clear color deviation for same batch of cargo
