HDSP3RGWS2512
Huading
HDSP3RGWS2512
| Quantity: | |
|---|---|
A project-based pallet solution for large, long or non-standard products that do not fit regular pallet sizes.
Modular plastic pallets, also known as assembled or spliced plastic pallets, can be configured by pallet size, support structure, steel reinforcement and handling method according to the actual product and logistics process.
Use modular pallets when the product is too long, too wide or needs a special support layout.
For oversized parts, long materials or project-based packaging, standard pallet sizes can create poor fit, unstable support and inefficient handling.
Cargo may exceed the pallet edge, increasing handling risk and reducing stacking stability.
Large parts may need support at specific positions instead of only standard pallet contact points.
Wooden pallets may be inconsistent, difficult to reuse and less suitable for repeated industrial circulation.
| Common Problem | Typical Cause | Modular Pallet Direction |
|---|---|---|
| Standard size does not fit | Product is longer, wider or irregular in footprint | Configure pallet length and width according to cargo dimensions |
| Insufficient support | Weight is concentrated at specific areas | Arrange modules and reinforcement according to load distribution |
| Handling instability | Forklift entry direction and pallet base are not matched | Confirm forklift handling direction before final design |
| Repeated packaging cost | Wooden or one-way packaging is replaced frequently | Use reusable modular plastic pallet for selected circulation projects |
The main value of a modular plastic pallet is project matching. The pallet size, bottom support and reinforcement can be planned around the real product and handling process.
A modular plastic pallet can be configured by panel layout, connection structure, bottom support, steel tube reinforcement and surface requirement.
Pallet surface can be assembled by modular sections to form project-based dimensions.
Spliced areas should be designed to maintain stability during handling and loading.
Runner or support layout should match forklift handling and ground contact condition.

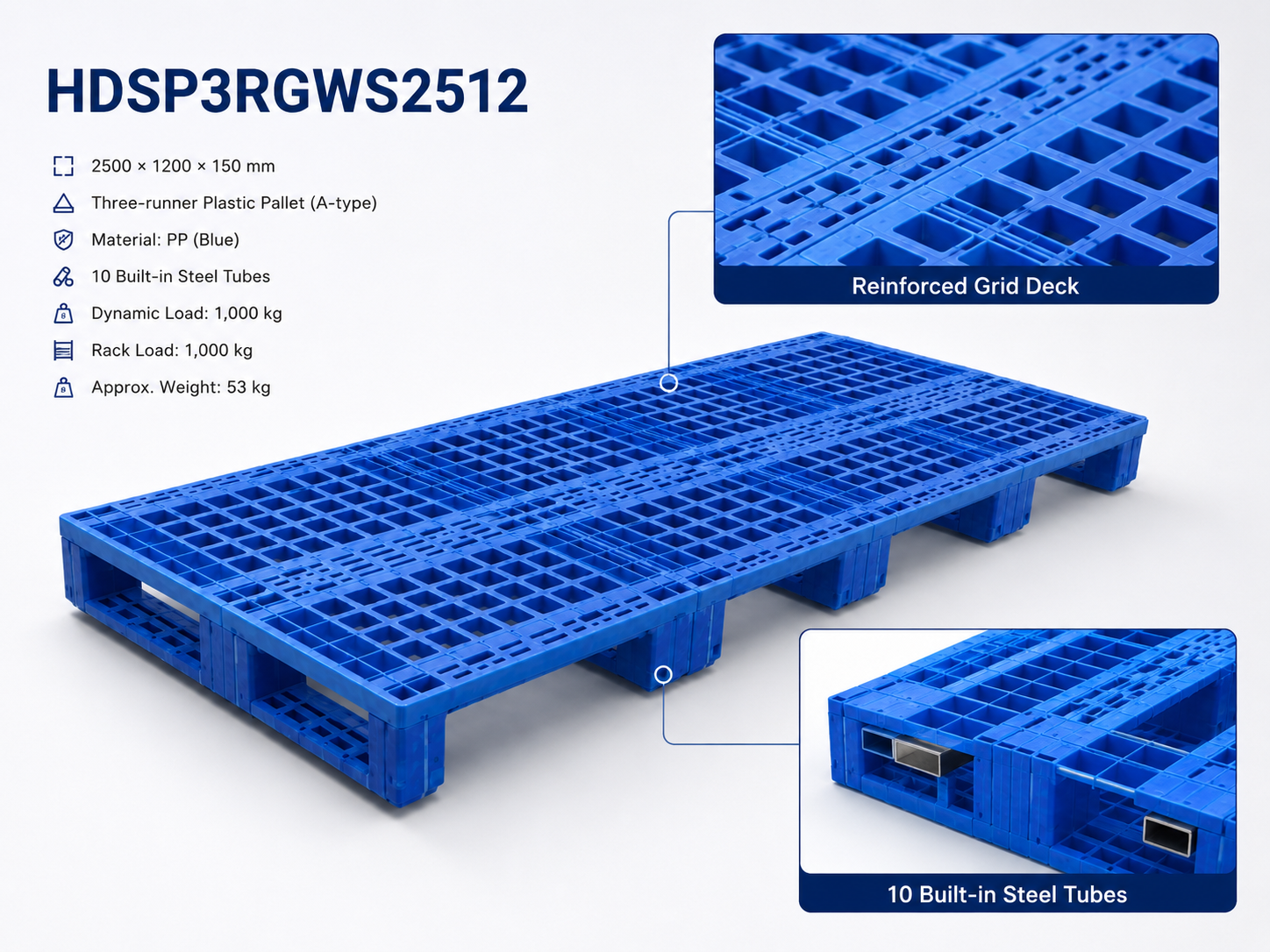

Steel tubes can be added according to load requirement and pallet structure.
| Configuration Item | What to Confirm | Why It Matters |
|---|---|---|
| Overall Size | Required pallet length, width and height | Determines module layout and handling feasibility |
| Deck Surface | Grid surface, flat surface or contact area requirement | Affects product support and loading stability |
| Bottom Structure | Forklift entry direction, runner layout and support points | Affects movement efficiency and pallet stability |
| Steel Tubes | Quantity, direction and position of reinforcement | Helps improve structural support for selected projects |
| Connection Area | Splicing method and reinforced connection points | Affects overall pallet integrity during handling |
A modular pallet is not selected like a standard SKU. It should be checked through a project-based recommendation process.
Confirm product size, weight, shape and loading direction.
Confirm forklift direction, pallet jack use and transport route.
Check module layout, support points and reinforcement needs.
Recommend suitable configuration and confirm production plan.
Modular plastic pallets are suitable for products that require non-standard size, stable support and repeated handling.
For large components, body parts and non-standard part footprints.
For long goods that cannot be supported by regular pallet sizes.
For large or heavy products requiring project-based support.
For selected reusable export and transport packaging projects.
For large parts staging, production supply and internal circulation.
| Application | Typical Requirement | How Modular Pallets Help |
|---|---|---|
| Automotive Parts | Large size, repeated handling and part protection | Custom dimensions and support layout can match product shape |
| Industrial Components | Heavy or uneven product weight distribution | Reinforcement and support points can be planned by load |
| Long Products | Standard pallets are too short or unstable | Modular length can be configured according to product length |
| Warehouse Circulation | Repeated movement between warehouse and production line | Reusable plastic structure supports daily handling cycles |
| Export Projects | Special product size and transport requirement | Project-based pallet layout can support selected export handling needs |
A modular pallet should not be selected only by overall size. The real application determines the support structure and reinforcement plan.
Confirm length, width, height and loading direction.
Check whether weight is evenly distributed or concentrated.
Confirm where the product should contact the pallet.
Match forklift entry and warehouse handling route.
Confirm whether steel tubes are needed and where to place them.
Check container loading, truck loading and stacking limitation.
| Check Point | What to Confirm | Why It Matters |
|---|---|---|
| Cargo Footprint | Product length, width and contact area | Determines final pallet size and module layout |
| Loading Weight | Total weight and weight distribution | Affects reinforcement, bottom support and safety margin |
| Forklift Handling | Forklift entry direction and lifting method | Affects runner layout and pallet base design |
| Stacking Requirement | Whether loaded pallets need stacking | Affects structural strength and top surface stability |
| Shipment Route | Truck, container or internal transport | Affects size limit, loading quantity and handling risk |
| Reuse Frequency | One-time project, repeated use or closed-loop circulation | Helps decide whether modular plastic pallet is suitable |

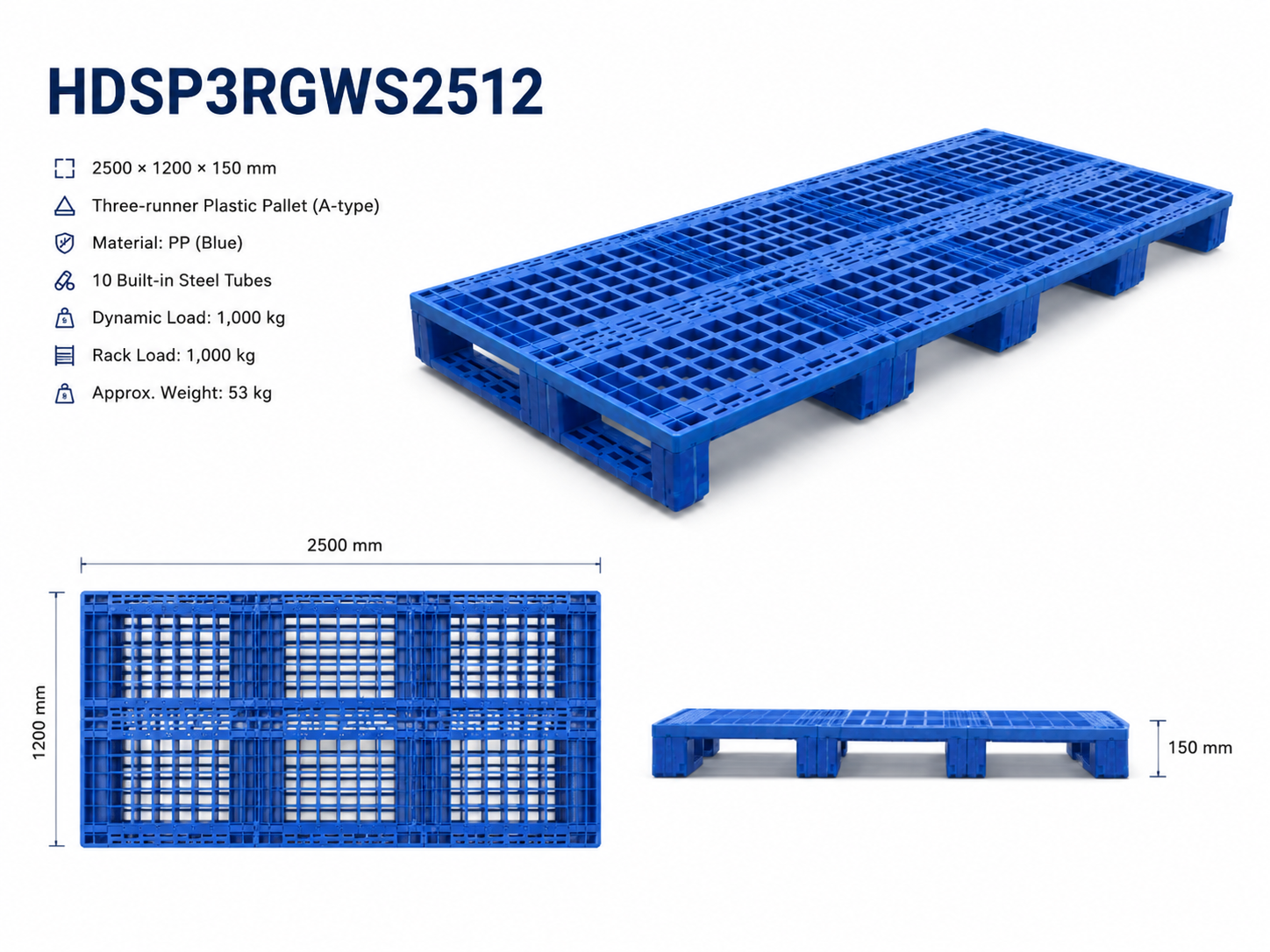

The following information is for a model-generic modular pallet page. Exact size, load and reinforcement data should be confirmed according to the selected project.
| Item | Common Project Options |
|---|---|
| Product Name | Modular Plastic Pallet / Assembled Plastic Pallet / Spliced Plastic Pallet |
| Material | HDPE / PP according to project requirement |
| Size | Customized length and width according to cargo dimensions |
| Surface | Grid deck or flat surface according to product contact requirement |
| Bottom Structure | Runner layout / support base / forklift entry according to handling method |
| Reinforcement | Steel tubes available for selected load requirements |
| Forklift Entry | 2-way or 4-way handling according to pallet structure |
| Color | Blue, black, grey or project-based color option |
| Application | Oversized cargo, automotive parts, industrial components, export packaging and warehouse circulation |
Modular pallets require more than a standard product quotation. Project data, structure matching and delivery planning should be checked together.
Review product dimensions, weight, support points and handling route.
Recommend module layout, bottom support and reinforcement direction.
Check pallet dimensions, connection areas, surface and steel tube placement.
Plan loading method according to pallet size, quantity and shipment route.
You do not need to know every technical detail before sending an inquiry. Start with cargo photo, approximate size or load weight.
Show us what needs to be supported or transported.
Length × width × height is enough to start.
Estimated weight and handling condition.
Start with cargo photo, approximate size and loading weight. We’ll help check whether a modular plastic pallet is suitable for your project.
