1400x1200x150 mm Three-Runner Open Deck Plastic Pallet

1400x1200x150 mm Three-Runner Open Deck Plastic Pallet for industrial storage, handling, and logistics applications. Model: HD3RGWS1412A.

  • HD3RGWS1412A

  • Huading

  • HD3RGWS1412A

Availability:
Quantity:
Inquire Add to Basket

1400x1200x150 mm Three-Runner Open Deck Plastic Pallet is prepared for industrial warehousing, logistics handling, and reusable pallet operations.

  • GridThree-RunnerPallet

  • HDPE/PP

  • Static Loading: 6T

  • Dynamic Loading: 1.5T

  • 12pcssteel tubes(6intopdeckand 6inbottomskids)

  • Color and final configuration can be confirmed according to project requirements.

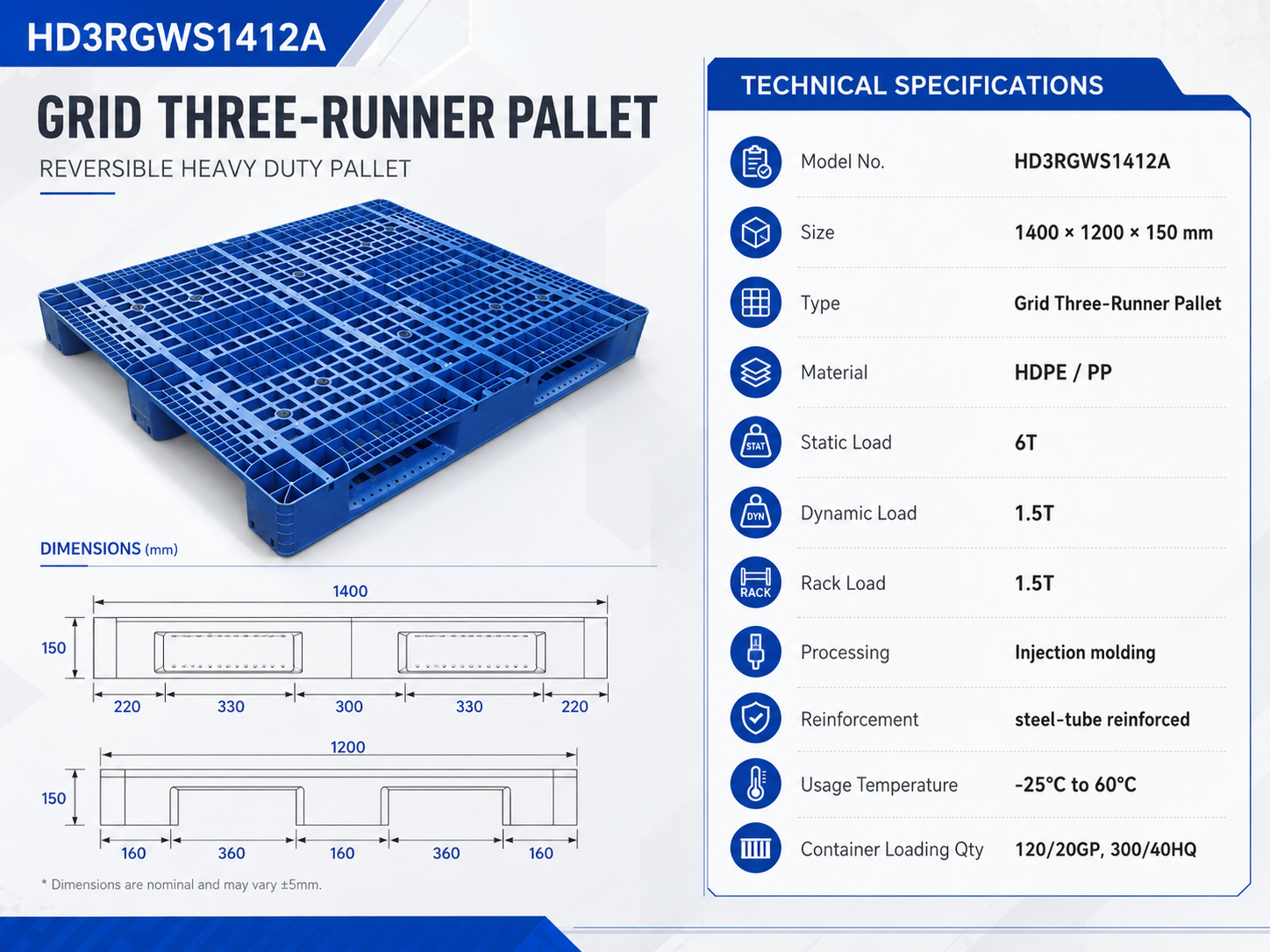

Model No.HD3RGWS1412A
Product TypeThree-Runner Open Deck Plastic Pallets
Size1400x1200x150 mm
Pallet TypeGridThree-RunnerPallet
MaterialHDPE/PP
Static LoadingStatic Loading: 6T
Dynamic LoadingDynamic Loading: 1.5T
Production ProcessingInjection molding
Reinforcement12pcssteel tubes(6intopdeckand 6inbottomskids)
Weight23.5kgs(17kgsforpallets+6.5kgsfor10pcssteeltubes)
Usage Temperature-25℃~60℃
Container Loading Qty120/20GP300/40HQ
HS Code3923900000
  • Warehouse storage and goods circulation
  • Manufacturing material handling
  • Logistics distribution and export packaging
  • Reusable pallet systems for industrial supply chains

Can this pallet be used for racking?
Racking use depends on the confirmed racking load, support span, reinforcement, and operating conditions.

Are the load values final?
Load values should be verified against the actual application before final quotation or production.

  • Source: Plastic Pallet Product Catalog PDF, page 27.
  • Imported as offline/draft product: status 0.
  • Product image is blank because Leadong import requires image URL, not PDF embedded image.
  • OCR-extracted source. Review model, load, material, and container loading quantity before publishing.
