HD3RCWS1210G
NO MARK
| Quantity: | |
|---|---|

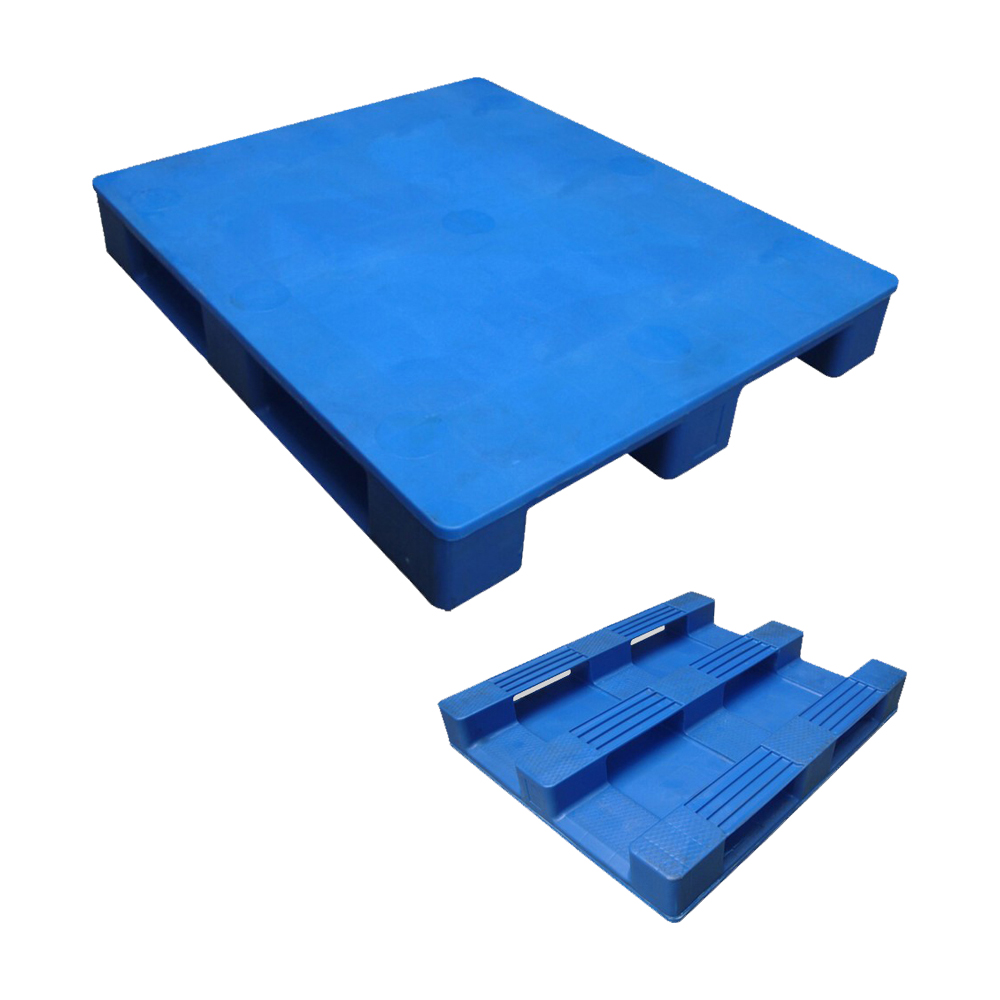

This 1200×1000×165 mm rackable plastic pallet combines a closed deck, three-runner base and four-way forklift entry for warehouse handling, stacking and selected racking applications.
Before ordering, confirm the unit-load weight, load distribution, rack support span, handling equipment and operating temperature. A pallet’s static, dynamic and racking ratings describe different support conditions and should not be treated as interchangeable.
| Model | HD3RCWS1210G |
|---|---|
| External dimensions | 1200 × 1000 × 165 mm |
| Material | Virgin PP is listed for this model; material grade and documentation are confirmed per order |
| Deck and base | Closed deck with three runners |
| Fork entry | Four-way forklift entry |
| Static load | Up to 6,000 kg under the stated test and support conditions |
| Dynamic load | Up to 1,500 kg under the stated test and handling conditions |
| Racking load | Up to 1,000 kg; rack span and support method must be confirmed |
Important: These load values are the current product-record ratings, not a universal operating guarantee. Final safe load depends on rack span, support pattern, load distribution, temperature, handling cycles and the required safety factor. Confirm the application and test conditions before purchase.
Warehouse stacking: for stable, evenly distributed unit loads within the confirmed static and dynamic limits.
Pallet racking: only after the rack beam span, load position and required deflection limit have been reviewed.
Forklift handling: four-way entry supports access from each side; verify fork dimensions and clearance.
Conveyors and automation: confirm deck flatness, bottom-runner contact points, sensors and transfer geometry with a sample or trial where practical.
Hygiene-sensitive applications: review cleaning method, material documentation and application-specific compliance requirements before use.
Product or unit-load type and total loaded weight
Load distribution and footprint on the pallet deck
Forklift, hand-pallet-truck, conveyor or automated-handling requirements
Rack beam span and support direction, if the pallet will be racked
Operating and storage temperature
Destination, order quantity and expected delivery schedule
Color, logo, labeling or other customization requirements
Logo, color and other customization options are reviewed against quantity, tooling and color-matching requirements. Availability, minimum order quantity and cost are confirmed in the quotation.
No. Racking capacity depends on rack span, beam support, load distribution, temperature and reinforcement. Send the rack details and required operating load for review.
Potentially, but compatibility must be checked against the actual conveyor, palletizer, sensor and transfer points. A sample or controlled trial is recommended before a volume order.
MOQ and lead time depend on stock, color, customization, quantity and production schedule. They are confirmed in the project quotation rather than guaranteed as a fixed value on this page.
Warranty scope, payment terms, inspection requirements and delivery responsibilities are confirmed in the sales contract for each order.
Sample availability and shipping method depend on the model, destination and current stock. Contact the sales team for confirmation.
Send Huading your load, rack span, handling method, destination and quantity through the contact page. You can also review more plastic pallet options and application projects. Final product specifications and commercial terms are confirmed before ordering.
