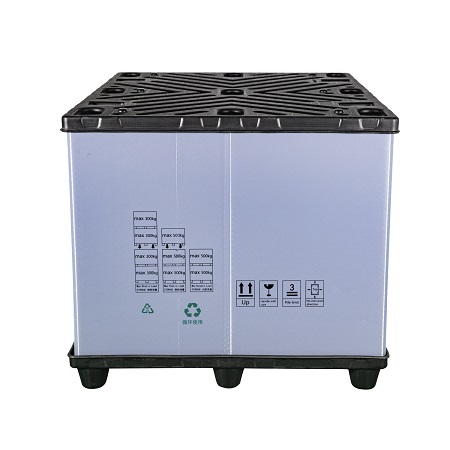

Heavy Duty Collapsible Plastic Sleeve Boxes with Lids

1.External DIM(mm): 1650*1150*500/760/860/1000/1050/... Any customized height
2.Folded height(mm): 1600*1150*205
3.Material: HDPE(lid & pallet)+PP(honeycomb sheets)
4.weight(kg): 31 kgs(pallet:18.5kg + lid:12.5kg)
  • HD-CM160115

Availability:
Quantity:

内页2内页1


F A Q:

Q: Can you offer customized plastic sleeve boxes?
A: Yes! We have more than 7 sizes from size 1100x1100mm to 1600x1400 for the bottom pallets to suit for various application,

For the height,it can be customized.

Q: Can you design for package solutions?

A: Yes,that’s what we expertise, we design packages solutions for VW,BMW,Porsche,Benz,Hyundai,BYD and so many famous cars manufacturers inland and abroad.


Q: Can you make any color for pallet boxes?

A: Yes, we can customized for any color.



Q:What’s the MOQ?
A: No MOQ

Q: How long for delivery time?
A: Generally 15-20days against deposit.


Q: Whats' your payment terms?
A: TT, L/C, Paypal, West Union,we-chat,credit card or others according to specific situation

Q: Any other additional service you can provide?
A:

*Customized Logo printing;

*Customized color;

*Free det+dem at destination port;

*Three years quality warranty

Q: Is there any quality assurance?
A: Quality Warranty 3 years. 1 for 1 within 1 year, 2 for 1 within 2 year, 3 for 1 within 3 year. And support 3rd party test.

Q: How can I get a sample to check your quality?
A: Some areas you can get samples from our local partners,and some samples can be sent by DHL/TNT/FedEx by or load to your containers.










When it comes to storage and transportation, a reliable and durable solution is needed. That is where the Heavy Duty Collapsible Plastic Sleeve Boxes with Lids comes in.


Item No.

HD-CM160115

Material:

HDPE(lid & pallet)+PP(honeycomb sheets)

External DIM(mm):

1650*1150*500/760/860/1000/1050/... Any customized height

Internal DIM(mm):

1540*1080*300/560/660/800/850... External -200

sleeve height(mm):

Total height -120

Folded height(mm):

1600*1150*205

pallet & lid weight(kg):

31 kgs(pallet:18.5kg + lid:12.5kg)

Locks:

Optional , 4 locks at lid,4pcs at bottom pallet

Honeycomb sleeve:

11.3mm 3.0kg/m2

11.3mm 4.0kg/m2

Static load(kg):

1+3 (1200kg),height<900mm 1+2 (1200kg),height>900mm

1+3 (2000kg),height<900mm 1+2 (2000kg),height>900mm

Dynamic load(kg):

1+2 (900kg),height<900mm 1+1 (900kg), height>900mm

1+2 (1500kg),height<900mm 1+1 (1500kg),height>900mm

Single box load (kg):

300Kg

500Kg

Folding times:

>30,000 times

Temperature:

-20℃-55℃

Service life:

More than 3 years

Folding type:

M-folding/U-folding

Steel Reinforcement:

No

Packing quantity:

90 sets/20G

240 sets/40H


This Heavy Duty Collapsible Plastic Sleeve Boxes with Lids is designed to offer a safe and convenient option for a range of industries, including logistics, food processing, and warehousing.


The box is made from high-density polyethylene for the lid and pallet, and polypropylene for the honeycomb sheets. This combination of materials ensures the box is strong, durable, and long-lasting, with a lifespan of more than three years.


The external dimensions of the plastic sleeve box measure 1650mm x 1150mm, and the height can be customized to suit the requirements of the user.

The plastic sleeve pack container is foldable and can be reduced to a height of 205mm, making it easy to store and transport when not in use.

The box is also lightweight, with a pallet and lid weight of 31kg, making it easy to move and handle.

Honeycomb sleeves are available in different weights, and the carrying capacity is also different accordingly.

The plastic sleeves can be fitted with locks, four on the lid and four on the bottom pallet, for extra security during transport.


The Heavy Duty Collapsible Plastic Sleeve Boxes with Lids can be used normally in the environment of -20°C to 55°C, and can be folded and unfolded more than 30,000 times.

With its versatility, durability, and convenience, this plastic pallet sleeve box is an excellent investment for any business in need of a reliable storage and transportation solution.
