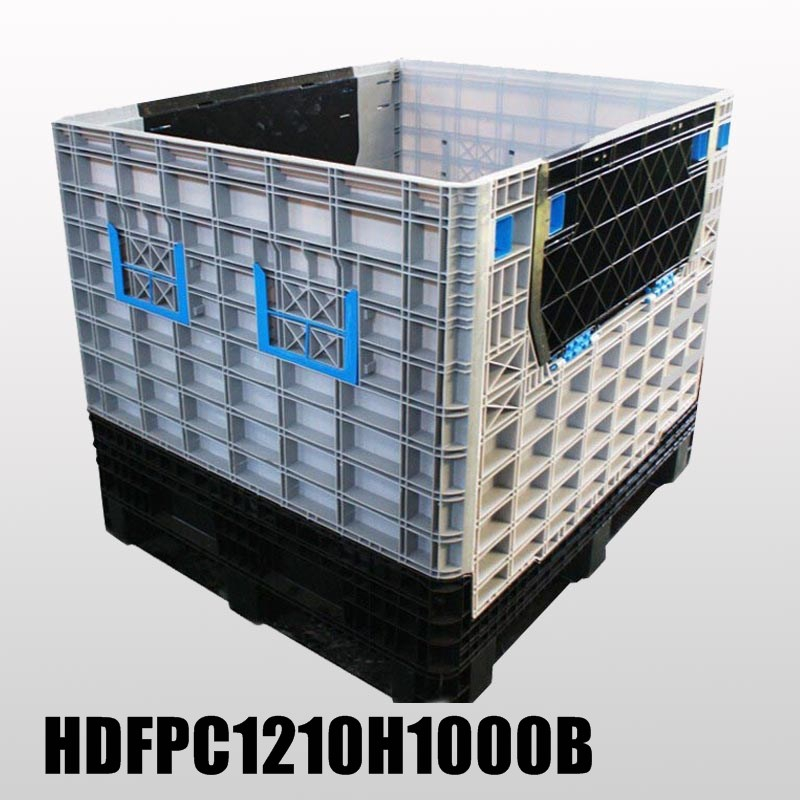

Foldable Pallet Container Hygienic Plastic Pallets

  • Huading

  • HDFPC1210H1000B

Availability:
Quantity:



       Type        Foldable Pallet Container(Collapsible pallet box)
       Art No.        HDFPC1210H1000B
       Description
       Size        L1200*W1000*H1000mm
       Entry Type        4 Way for forklifer and 2 way for hand lifter
       Material        HDPE
       Colour        Blue,Black,Grey
       Volume        800 L
       External Dimensions        L1200*W1000*H1000mm
       Internal Dimensions        L1120*W960*H860mm
       Folded Dimensions        L1200*W1000*H350mm
       Quantity in 20GP        60 PCS
       Quantity in 40GP        126 PCS
       Quantity in 40HC        144 PCS
       Unit weight        64KGS
       Avaliable for racking        Yes
       Labeling options        Logos and numberings on request, depending on volume
       Load capacity
       Dynamic Load          1.2T
       Static Load              4T
       In racking system        1T
       Features
       1) Made from HDPE, acid-proof, alkali resistance, anti-corrosive, dustproof and high intensity
       2) With 3 runners or 9 feet bottom, available for hand lifter and forklift, foldable,stackable
       3) Can be fitted with casters,covers and nozzles.
       4) Be widely use for solid,liquid, powdery and pasty material packaging,such as Auto parts,Clothing fabrics,fruit and vegetables,metal powder and so on
       5) Be widely use in the filed of textile and printing,machine building,Auto parts,chemical industry, food, pharmaceutical medical,warehouse.The supermarket stores, plantation industry and the aquaculture industry and etc.
       Advantages
       1) Service life is 10 times longer than wooden containers
       2)Much lighter than wooden and steel containers ,so they are efficient in the process of transport and store.
       3) Recyclable and washable
       4)Certificates: ISO 9001, ISO 14001, ISO/TS16949 and food grade certificate
       Other sizes available
       Specification(mm)        Material        Dynamic load(T)        Static load(T)        In racking system(T)
       1200*1000*1000        HDPE        1        4        1
       1200*1000*860        HDPE        1        4        1
       1200*1000*760        HDPE        1        4        1
       1200*1000*590        HDPE        1        4        1
       1200*800*515        HDPE        0.5

卡板箱部件解析图-网站用图
卡板箱部件-网站用图
FOLDABLE CONTAINER H1000


       No.        Part Name        Type        Standard Color         Custom Colors        Qty        Function
       1        Lid        General        Blue        Yes        1        Dust and Sun Proof
       2        Pedestal        General        Black        Yes        1        Body
       3        Longer Wall        Specialized        Gray        Yes        2        Body
       4        Shorter Wall        Specialized        Gray        Yes        2        Body
       5        Opening        General        Black        Yes        2        Body
       6        Clips        General        Blue        Yes        8        Connect Walls
       7        Connecting Shaft        General        Blue        Yes        4        Connect longer wall and Opening
       8        Label holder        General        Blue        Yes        4        Labels location
       9        Connecting Shaft        General        Black        Yes        4        Connect Base and Walls
